Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
- 8M0178521 REMOTE CONTROL 16900A15 SS $591.83 $554.33 1
- 8M0178524 REMOTE CONTROL 16900A20 SS $606.50 $556.62 1
- 8M0178526 REMOTE CONTROL 16901A15 SS $552.14 $507.50 1
- 8M0178526 REMOTE CONTROL 16902A15 SS $552.14 $507.50 1
- 8M0178527 REMOTE CONTROL 16903A20 SS $504.74 $470.30 1
- 881170A5 REMOTE CONTROL 16904A15 SS $550.08 $507.50 1
- 881170A6 REMOTE CONTROL 16905A20 SS $528.62 $493.07 1
- 881170A8 REMOTE CONTROL 16908A1 SS $400.95 $378.40 1

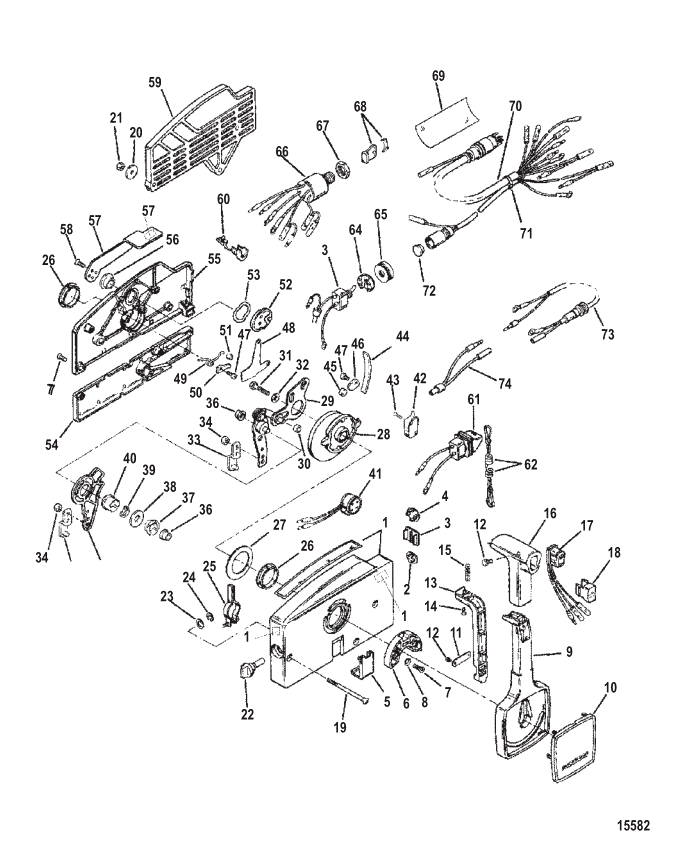

1 16910A1 ----HOUSING KIT Front NLA $0.00 $0.00 1
2 89774 ----PLUG Key Switch NLA $0.00 $0.00 1
3 17191 ----PLUG Wire Harness Hole NLA $0.00 $0.00 1
4 17191 ----PLUG Wire Harness Hole NLA $0.00 $0.00 1
5 16917 ----COVER ACT $6.43 $6.30 1
6 16899T ----HOLDER Neutral Lock 16899 SS $5.19 $5.08 1
7 40118107 ----SCREW (M5 x 18) ACT $1.79 $1.76 7
8 16923 ----LOCKWASHER External ACT $0.92 $0.91 2
9 16913T ----LEVER NLA $0.00 $0.00 1
10 16916A1 ----CAP ASSEMBLY NLA $0.00 $0.00 1
11 16921 ----BRACKET Lock Bar Support ACT $2.30 $2.26 1
12 4005685 ----SCREW (M4 x 10) ACT $1.79 $1.76 AR
13 16915 ----LOCK ARM NLA $0.00 $0.00 1
14 40056105 ----SCREW (M5 x 10) ACT $1.21 $1.19 1/2
15 16924 ----SPRING ACT $1.54 $1.51 1
16 16914 ----GRIP NLA $0.00 $0.00 1
17 18286A43 ----SWITCH ASSEMBLY 18286A26 SS $56.96 $54.78 1
18 17016 ----PLUG NLA $0.00 $0.00 1
19 40116110T ----SCREW (M6 x 110) 40116110 SS $4.47 $4.37 3
20 35280 ----WASHER (.255 x .620 x .030) Stainless Steel ACT $3.20 $3.13 3
21 401196 ----NUT (M6) ACT $2.98 $2.92 3
22 16920 ----BRAKE ADJUSTER NLA $0.00 $0.00 1
23 16896 ----WASHER ACT $0.92 $0.91 1
24 13194 ----RING Retaining ACT $1.21 $1.19 1
25 16895 ----ARM ASSEMBLY Brake NLA $0.00 $0.00 1
26 16875 ----BEARING (1.750 Inside Diameter) (1.750 Inside Diameter) ACT $1.79 $1.76 2
27 16874 ----WASHER ACT $1.54 $1.51 1
28 16892T ----GEAR Drive 16892 SS/NLA $0.00 $0.00 1
29 850723A2 ----PLATE/STUD ASSEMBLY 16893A1 SS $55.10 $53.50 1
29 850724A2 ----PLATE/STUD ASSEMBLY 16894A2 SS $58.17 $56.48 1
29 850723A2 ----PLATE/STUD ASSEMBLY ACT $55.10 $53.50 1
29 850724A2 ----PLATE/STUD ASSEMBLY ACT $58.17 $56.48 1
30 16873 ----ROLLER Cam ACT $2.91 $2.85 1
31 4007154 ----SCREW (M8 x 30) ACT $2.98 $2.94 1
32 8M0207778 ----WASHER 12038 SS $10.10 $9.85 1
33 85899A1 ----CLIP ASSEMBLY ACT $4.64 $4.55 2
34 401385 ----NUT (M5) 400633 SS $4.80 $4.69 2
35 16918A3 ----GEAR SHIFT 16918A1 SS/NLA $0.00 $0.00 1
36 16871 ----BEARING (.350 Inside Diameter) ACT $2.25 $2.21 2
37 16868 ----BEARING (.750 Inside Diameter) (.750 Inside Diameter) ACT $2.25 $2.20 1
38 16870 ----WASHER ACT $1.54 $1.51 1
39 16872 ----LOCKWASHER NLA $0.00 $0.00 1
40 16869 ----BEARING (.870 Inside Diameter) NLA $0.00 $0.00 1
41 8M0210763 ----ALARM ASSEMBLY Audio Warning 816492A1 SS $55.74 $53.63 1
42 17277T ----SWITCH ASSEMBLY 17277 SS $10.96 $10.82 1
43 4005647 ----SCREW (M3 x 16) ACT $1.22 $1.20 2
44 16882 ----SPRING Detent NLA $0.00 $0.00 5
45 16879 ----ROLLER Detent ACT $2.30 $2.26 1
46 16880 ----CLIP Detent ACT $2.30 $2.26 1
47 4005683 ----SCREW (M4 x 6) ACT $1.21 $1.20 2
48 17685 ----SEPARATOR ACT $3.48 $3.42 1
49 16888 ----SPRING ACT $2.25 $2.20 1
50 16886 ----CLIP ACT $2.91 $2.85 1
51 16884 ----ROLLER ACT $2.91 $2.85 1
52 16883 ----DRUM ASSEMBLY ACT $14.22 $13.95 1
53 16922 ----WAVE WASHER ACT $0.92 $0.91 1
54 881170A8 ----COVER Bottom 16912T REP $400.95 $378.40 1
55 16911T ----COVER Top ACT $39.09 $38.40 1
56 16887 ----BEARING (.810 Inside Diameter) (.810 Inside Diameter) ACT $2.25 $2.20 1
57 16919A1 ----LEVER ASSEMBLY ACT $23.58 $23.13 1
58 40118106 ----SCREW (M5 x 12) ACT $1.79 $1.76 2
59 17063T ----SPACER ACT $15.77 $15.47 1
60 71942 ----BUSHING NLA $0.00 $0.00 1
61 91941A8 ----SWITCH ASSEMBLY Stop 91941A6 SS $29.08 $28.67 1
62 15920Q54 ----LANYARD ASSEMBLY 15920A54 SS/NLA $0.00 $0.00 1
63 91941A7 ----SWITCH ASSEMBLY Run/Off ACT $41.26 $40.70 1
64 88144 ----BUSHING NLA $0.00 $0.00 1
65 29644 ----BEZEL ACT $12.82 $12.57 1
66 17009A5 ----SWITCH 17009A2 SS $68.47 $65.87 1
67 879755 --------NUT Special - Chrome Brass 93543 SS $6.10 $5.95 1
68 90468A1 ----COVER ASSEMBLY Key ACT $4.77 $4.71 2
69 15097 ----SHEET Neoprene ACT $4.75 $4.67 1
70 17179T1 ----HARNESS ASSEMBLY 17179A1 SS $150.01 $143.40 1
70 17179T2 ----HARNESS ASSEMBLY 17179A2 SS $182.60 $171.91 1
70 17247T1 ----HARNESS ASSEMBLY 17247A1 SS $195.07 $183.68 1
71 816311T ----TIE STRAP (8.00 Inches) ACT $0.59 $0.58 AR
72 11023 ----PLUG ACT $1.18 $1.16 1
73 17193A1 ----HARNESS ASSEMBLY 2 Wire NLA $0.00 $0.00 1
74 11149A1 ----CABLE ASSEMBLY (3.00 Inches) ACT $4.80 $4.74 1
74 11149A2 ----CABLE ASSEMBLY (6.00 Inches) ACT $16.50 $16.26 1
