Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

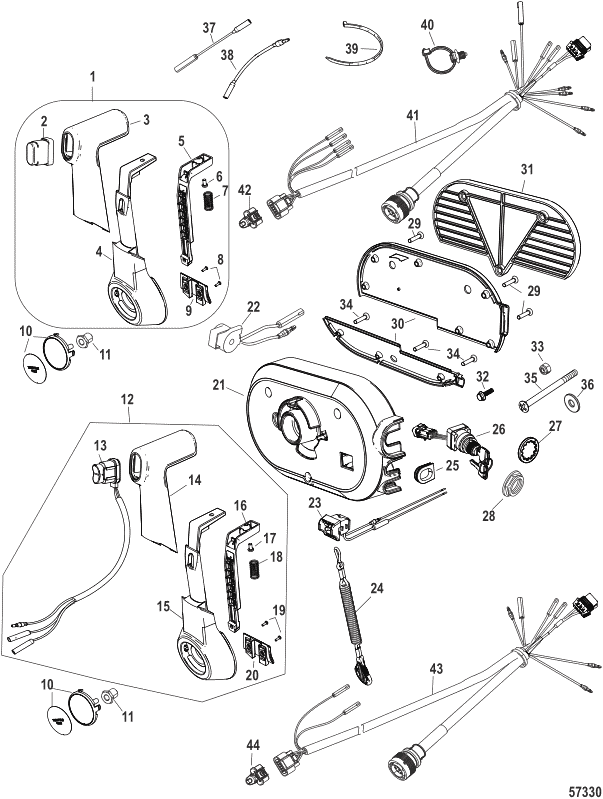

- 8M0176287 REMOTE CONTROL With Trim (15 Feet) 8M0083666 REP $707.02 $623.17 1
- 8M0176288 REMOTE CONTROL With Trim (20 Feet) 8M0083667 REP $707.02 $623.17 1
- 8M0176289 REMOTE CONTROL Non Trim (15 Feet) 8M0083860 REP $707.02 $623.17 1
1 8M0100485 ----HANDLE ASSEMBLY Non Trim NLA $0.00 $0.00 1
2 8M0086976 --------PLUG Handle - Remote Control ACT $1.24 $1.22 1
3 8M0083671 --------GRIP Handle ACT $9.12 $8.96 1
4 NSS ----------------NOT SOLD SEPARATE Handle Hub $0.00 $0.00 1
5 8M0192342 --------LOCK BAR Remote Control 8M0083673 SS $6.60 $6.49 1
6 8M0099569 --------SCREW (M4 x 8) ACT $0.70 $0.69 1
7 16924 --------SPRING ACT $1.58 $1.55 1
8 858686 --------SCREW (#8) ACT $1.20 $1.18 2
9 8M0083674 --------RETAINER Lock Bar Remote Control ACT $13.57 $13.31 1
10 8M0100486 ----CAP AND DECAL ACT $6.28 $6.16 1
11 8222131 ----BOLT ACT $6.06 $5.95 1
12 8M0214461 ----HANDLE ASSEMBLY With Trim 8M0100483 SS $86.18 $82.05 1
13 8M0100481 --------TRIM SWITCH ASSEMBLY ACT $17.83 $17.48 1
14 8M0083671 --------GRIP Handle ACT $9.12 $8.96 1
15 NSS ----------------NOT SOLD SEPARATE Handle Hub $0.00 $0.00 1
16 8M0192342 --------LOCK BAR Remote Control 8M0083673 SS $6.60 $6.49 1
17 8M0099569 --------SCREW (M4 x 8) ACT $0.70 $0.69 1
18 16924 --------SPRING ACT $1.58 $1.55 1
19 858686 --------SCREW (#8) ACT $1.20 $1.18 2
20 8M0083674 --------RETAINER Lock Bar Remote Control ACT $13.57 $13.31 1
21 8M0101176 ----HOUSING ASSEMBLY Remote Control, with Decal See separate parts breakdown for replacement parts. ACT $181.10 $166.20 1
22 8M0210763 ----ALARM ASSEMBLY Audio Warning 8M3001068 SS $56.87 $53.56 1
23 11083A4 ----SWITCH ASSEMBLY Stop ACT $58.99 $55.57 1
24 8M0164890 ----LANYARD CORD ASSEMBLY 54 8M0092849 SS $19.22 $18.80 1
24 8M0164891 ----LANYARD CORD ASSEMBLY 54 8M0092850 SS $19.22 $18.80 1
25 8M0055593 ----GROMMET ACT $0.91 $0.89 1
26 897716K01 ----SWITCH KIT Ignition (3 Position) With Keys ACT $71.91 $67.70 1
27 8M0207779 --------LOCKWASHER Internal Tooth (.750) 76629 SS $8.29 $8.10 1
28 897716001 --------NUT Plastic-Key Switch ACT $5.92 $5.81 1
29 8M0088358 ----SCREW SS (M4 x 0.7x 20) ACT $0.14 $0.14 6
30 NSS --------NOT SOLD SEPARATE Upper / Lower Back, Housing $0.00 $0.00 1
31 8M0114782 ----SPACER Side Mount Remote Control ACT $28.74 $28.23 1
32 8M0204698 ----SCREW (#8-32 x .375) 859665 SS $2.59 $2.53 1
33 401196 ----NUT (M6) ACT $3.06 $3.00 3
34 8M0088358 ----SCREW SS (M4 x 0.7x 20) ACT $0.14 $0.14 3
35 40116110T ----SCREW SS (M6 x 120) 8M0094609 REP $4.55 $4.46 3
36 35280 ----WASHER (.255 x .620 x .030) Stainless Steel ACT $3.19 $3.11 3
37 8M2100450 ----HARNESS ADAPTER Neutral, Female NLA $0.00 $0.00 1
38 8M2100451 ----HARNESS ADAPTER Neutral, Male NLA $0.00 $0.00 1
39 816311T ----TIE STRAP (8.00 Inches) ACT $0.60 $0.59 3
40 899145 ----CLIP Tie Strap ACT $3.39 $3.30 2
41 8M0143199 ----TRIM HARNESS Remote Control, 15 feet 8M0101077 REP $185.76 $167.46 1
41 8M0143200 ----TRIM HARNESS Remote Control, 20 feet 8M0101079 REP $201.35 $181.54 1
42 814434T --------BULLET TERMINAL PLUG ACT $15.99 $15.61 1
43 8M0101080 ----HARNESS NON TRIM Remote Control, 15 feet ACT $180.38 $162.64 1
44 814434T --------BULLET TERMINAL PLUG ACT $15.99 $15.61 1
