| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

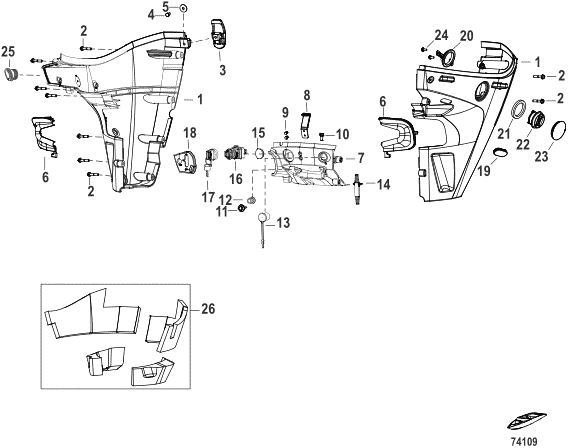

| 1 | 8M0189785 | LOWER COWL ASSEMBLY Starboard | ACT | $275.50 | $259.44 | 1 | |||
| 1 | 8M0225515 | LOWER COWL ASSEMBLY Starboard, Jet | 8M0189786 | SS |
|
$164.91 | $155.31 | 1 | |
| 1 | 8M0189787 | LOWER COWL ASSEMBLY Port | ACT | $275.50 | $259.44 | 1 | |||
| 2 | 8M0137380 | BOLT | ACT | $1.90 | $1.86 | 9 | |||
| 3 | 8M0063135 | COWL LATCH ASSEMBLY | ACT | $35.33 | $34.70 | 1 | |||
| 4 | 8230427 | BOLT ASSEMBLY (M6 x 12) | ACT | $4.10 | $4.00 | 1 | |||
| 5 | 898101937 | WASHER | ACT | $7.59 | $7.42 | 1 | |||
| 6 | 8M0189963 | COVER Mount, Starboard | ACT | $19.20 | $18.73 | 1 | |||
| 6 | 8M0189965 | COVER Mount, Port | ACT | $19.20 | $18.73 | 1 | |||
| 7 | 8M0189942 | LOWER PANEL Front | ACT | $57.08 | $54.91 | 1 | |||
| 8 | 8M0189941 | HOOK Lower Cowl | ACT | $0.90 | $0.88 | 1 | |||
| 9 | 8M0137384 | RIVET | ACT | $1.90 | $1.86 | 2 | |||
| 10 | 8248324 | SCREW (M6 x 16) | ACT | $1.80 | $1.76 | 1 | |||
| 11 | 8M0174563 | SHOULDER BOLT | ACT | $4.60 | $4.49 | 2 | |||
| 12 | 8M0189958 | GROMMET Front Mount | ACT | $3.40 | $3.32 | 2 | |||
| 13 | 8M0189960 | PROTECTOR Fuel Connector | ACT | $4.90 | $4.78 | 1 | |||
| 14 | 8M0189966 | GROMMET Shift Shaft | ACT | $19.59 | $19.12 | 1 | |||
| 15 | 8M0189967 | GROMMET Key Switch | ACT |
|
$5.50 | $5.37 | 1 | ||
| 16 | 897716K01 | SWITCH KIT Ignition (3 Position) With Keys | ACT |
|
$70.48 | $67.78 | 1 | ||
| 17 | 8M0189945 | KEYS CAP ASSEMBLY | ACT |
|
$6.80 | $6.64 | 1 | ||
| 18 | 8M0189943 | GROMMET Ingress | ACT |
|
$10.10 | $9.85 | 1 | ||
| 18 | 8M0189944 | GROMMET Ingress | ACT |
|
$17.80 | $17.36 | 1 | ||
| 19 | 853709007 | GROMMET | ACT | $5.20 | $5.08 | 1 | |||
| 20 | 8M0189799 | BRACKET Trim Switch | ACT |
|
$4.90 | $4.78 | 1 | ||
| 21 | 8M0189856 | GASKET Power Trim Switch | ACT |
|
$0.00 | $0.00 | 1 | ||
| 22 | 898103011 | SWITCH PTT | ACT |
|
$84.17 | $80.96 | 1 | ||
| 23 | 8M0189938 | GROMMET Trim Switch | ACT |
|
$8.70 | $8.49 | 1 | ||
| 24 | 879194330 | SCREW | ACT |
|
$16.00 | $15.61 | 2 | ||
| 26 | 8M0189968 | SOUND BLANKET Lower Cowl | ACT | $35.67 | $35.03 | 1 | |||
| - | 8M0191055 | ELECTRIC START KIT | ACT | $708.93 | $666.97 | 1 | |||
| - | 8M0191052 | CONVERSION KIT Remote Control Model to Power Tilt/Tiller Handle Model | ACT | $937.43 | $881.94 | 1 | |||
| - | 8M0191051 | CONVERSION KIT Remote Control Model to Non Power Tilt/Tiller Handle Model | ACT | $925.50 | $870.72 | 1 | |||
| - | 8M0191054 | CONVERSION KIT Power Tilt Tiller Handle Model to Remote Control Model | ACT | $310.17 | $292.09 | 1 | |||
| - | 8M0191053 | CONVERSION KIT Manual Start Tiller Handle Model to Remote Control Model | ACT | $176.75 | $166.45 | 1 |
