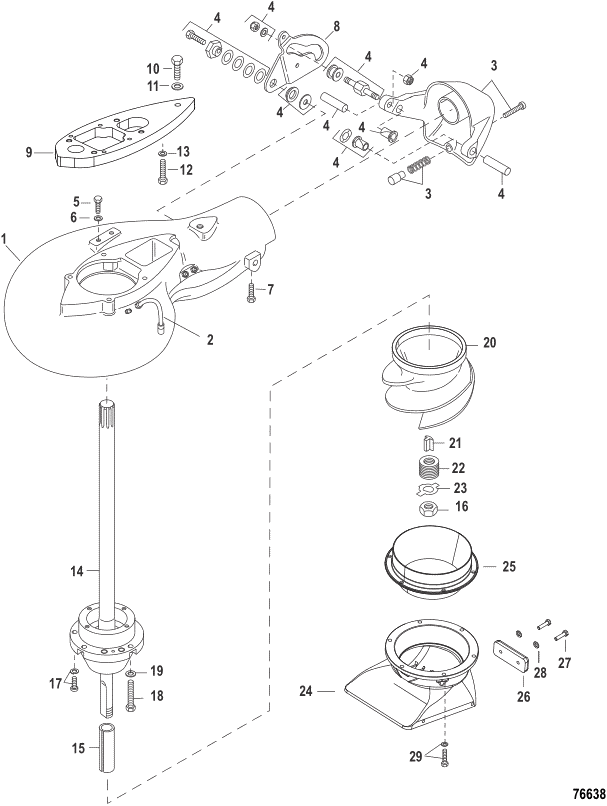

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0218213 | VOLUTE HOUSING | ACT |
|
$2,395.86 | $2,196.34 | 1 | ||
| 2 | 827490 | ----HOSE Lube | ACT | $91.25 | $87.77 | 1 | |||
| 3 | 878378 | ----GATE Reverse - With Bumper | ACT | $388.07 | $370.94 | 1 | |||
| 4 | 878376 | ----SHIFT LINKAGE KIT | ACT | $268.58 | $252.93 | 1 | |||
| 5 | 16832 | ----BOLT (M6 x 16) | ACT | $4.50 | $4.39 | 2 | |||
| 6 | 16826 | ----WASHER Stainless Steel | ACT | $3.30 | $3.22 | 2 | |||
| 7 | NSS | --------NOT SOLD SEPARATE Screw |
|
$0.00 | $0.00 | 1 | |||
| 8 | 898101657 | SHIFT CAM | ACT | $72.17 | $69.41 | 1 | |||
| 9 | 8M0218214 | ADAPTER PLATE | ACT | $1,074.29 | $984.82 | 1 | |||
| 10 | 898101795 | BOLT | ACT | $11.80 | $11.51 | 1 | |||
| 11 | 879194340 | WASHER | ACT | $5.10 | $4.98 | 1 | |||
| 12 | 879194254 | BOLT | ACT | $6.70 | $6.54 | 4 | |||
| 13 | 879194342 | WASHER | ACT | $3.80 | $3.71 | 4 | |||
| 14 | 8M0218215 | DRIVESHAFT ASSEMBLY | ACT |
|
$1,074.57 | $985.09 | 1 | ||
| 15 | 827189 | ----SLEEVE | ACT | $28.92 | $28.40 | 1 | |||
| 16 | 827190 | ----NUT | ACT | $34.76 | $34.13 | 1 | |||
| 17 | 878388001 | SCREW | ACT | $1.90 | $1.86 | 1 | |||
| 18 | 879194256 | BOLT | ACT | $5.30 | $5.17 | 4 | |||
| 19 | 879194342 | WASHER | ACT | $3.80 | $3.71 | 4 | |||
| 20 | 8M0218216 | IMPELLER | ACT | $686.00 | $645.39 | 1 | |||
| 21 | 8M0218217 | KEY | ACT |
|
$35.83 | $35.19 | 1 | ||
| 22 | 801404625 | SHIM Impeller | ACT | $8.80 | $8.59 | 1 | |||
| 23 | 801403625 | TAB WASHER | ACT | $10.70 | $10.44 | 1 | |||
| 26 | 8M0218220 | ----ANODE | ACT |
|
$35.00 | $34.37 | 1 | ||
| 27 | 8M0218221 | --------BOLT (M6 x 25) | ACT | $5.80 | $5.66 | 2 | |||
| 28 | 8M0218222 | --------WASHER | ACT | $1.20 | $1.18 | 2 | |||
| 29 | 167051 | ----BOLT (M6 x 20) | ACT | $6.10 | $5.95 | 6 | |||
| - | 816311T | TIE STRAP (8.00 Inches) | ACT |
|
$0.59 | $0.58 | 1 |
