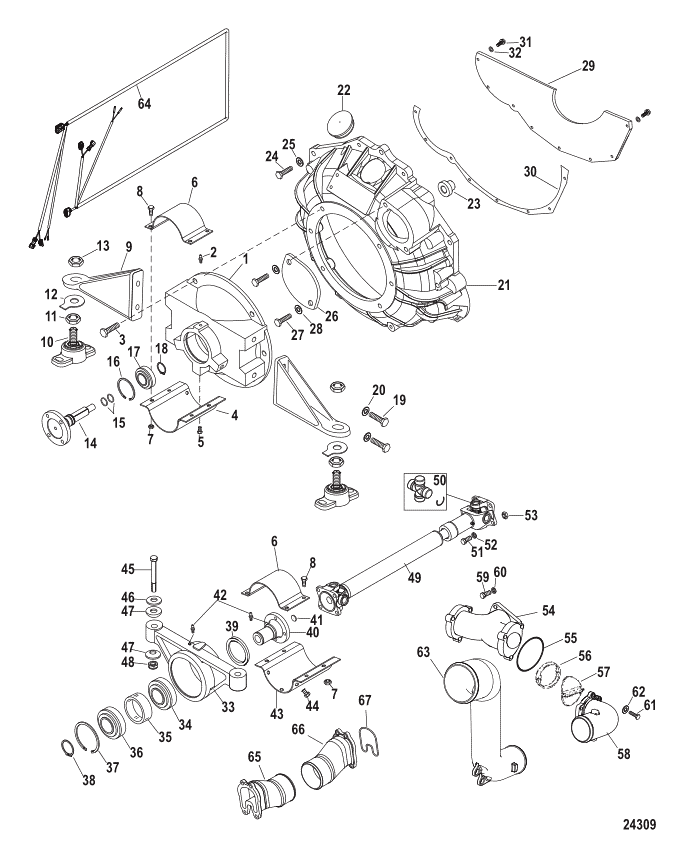

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 93911A4 HOUSING ASSEMBLY Shaft Extension Support ACT $985.99 $897.63 1
2 8M0169589 FITTING Grease 74036 SS $4.79 $4.69 1
2 8M0204738 PLUG (.250-28 x .320) 8M2015913 SS $6.89 $6.73 1
3 47651 SCREW (.437-14 x 1.50) ACT $2.39 $2.33 6
4 93918A1 SHIELD Lower ACT $260.99 $235.22 1
5 96995 SCREW (.375-16 x .880) ACT $1.70 $1.66 3
6 93919A1 SHIELD Upper ACT $325.49 $293.37 2
7 82670912 NUT (.375-16) Stainless S ACT $6.79 $6.64 8
8 96995 SCREW (.375-16 x .880) ACT $1.70 $1.66 8
9 93923A1 MOUNT ASSEMBLY Flywheel Housing ACT $157.99 $142.07 2
10 814263A1 BASE ASSEMBLY Mount Assembly ACT $129.99 $117.05 2
11 816331 ----NUT (.750-16) Jam ACT $7.59 $7.42 1
12 12657 ----TAB WASHER ACT $4.69 $4.59 1
13 859126 ----NUT (.750-16) ACT $17.49 $17.11 1
14 93906A2 SHAFT Output ACT $912.99 $831.15 1
15 8M0204650 O-RING (.924 x .103) 29845 SS $2.89 $2.82 2
16 94104 RING Retaining ACT $10.79 $10.54 1
17 879194A03 BEARING Ball 62780T SS $167.49 $150.93 1
18 841897T RING Retaining ACT $19.69 $19.21 1
19 47651 SCREW (.437-14 x 1.50) ACT $2.39 $2.33 4
20 32993 LOCKWASHER (.437) ACT $1.70 $1.66 4
21 814309A1 HOUSING ASSEMBLY ACT $533.99 $486.06 1
22 12304 ----PLUG Timing Window ACT $16.69 $16.37 1
23 49126 BUSHING Pilot ACT $59.99 $56.50 1
24 37612 SCREW (.375-16 x 1.250) ACT $2.49 $2.43 1
24 34353 SCREW (.375-16 x 1.00) ACT $2.59 $2.53 1
24 47688 SCREW (.375-16 x 2.750) ACT $3.59 $3.50 2
25 35048 LOCKWASHER (.375) ACT $1.20 $1.18 4
26 939201 PLATE Cover ACT $53.99 $50.74 1
27 92913 SCREW (.437-14 x .750) ACT $15.49 $15.12 2
28 32993 LOCKWASHER (.437) ACT $1.70 $1.66 2
29 818718A3 COVER KIT Flywheel Inspection ACT $70.99 $66.87 1
30 86015 GASKET Flywheel Inspection Cover ACT $11.49 $11.22 1
31 98253 SCREW (.250-20 x .500) ACT $1.10 $1.08 7
32 26992 LOCKWASHER (.250) Stainle ACT $1.20 $1.18 7
33 817416A4 HOUSING ASSEMBLY Bearing ACT $1,735.99 $1,554.53 1
34 93944A2 ----BEARING SET Ball ACT $138.49 $124.56 1
35 817417T ----SPACER ACT $265.99 $239.50 1
36 93944A2 ----BEARING SET Ball ACT $138.49 $124.56 1
37 93914 ----RING Retaining ACT $95.99 $90.09 1
38 93915 ----RING Retaining ACT $56.99 $53.58 1
39 93924 ----SEAL Oil ACT $29.39 $28.81 1
40 NSS --------NOT SOLD SEPARATE Input Shaft $0.00 $0.00 1
41 93921 ----EXPANSION PLUG ACT $34.49 $33.83 1
42 8M0169589 ----FITTING Grease 74036 SS $4.79 $4.69 2
43 93918A1 ----SHIELD Lower ACT $260.99 $235.22 1
44 76926 ----SCREW (.375-16 x .875) ACT $1.10 $1.08 3
45 57053 SCREW (.500-20 x 4.500) ACT $5.49 $5.37 2
46 35777 WASHER (.5156 x 1.375 x . ACT $2.59 $2.53 2
47 42307 WASHER Spherical ACT $19.79 $19.31 4
48 898832 NUT (.500-20) ACT $3.69 $3.59 2
49 94819T5 DRIVESHAFT ASSEMBLY (34.50 Inches) ACT $1,164.49 $1,042.61 1
50 61221T ----CROSS AND BEARING With Clips ACT $242.49 $218.24 1
51 805159 SCREW (.437-20 x 1.500) ACT $4.99 $4.88 8
52 400248 LOCKWASHER (M10) ACT $1.70 $1.66 8
53 82670815 NUT (.437-20) ACT $2.59 $2.53 8
54 98626A3 SEPARATOR Exhaust NLA $0.00 $0.00 1
55 35029 O-RING (78.97 X 3.53 MM) ACT $3.39 $3.30 2
56 60931 RETAINER ACT $22.59 $22.18 2
57 60930 SHUTTER Water Exhaust ACT $42.49 $41.65 2
58 94018A1 ELBOW ASSEMBLY Exhaust NLA $0.00 $0.00 2
59 37612 SCREW (.375-16 x 1.250) ACT $2.49 $2.43 4
60 35048 LOCKWASHER (.375) ACT $1.20 $1.18 4
61 8M0113174 SCREW (.375-16 x 1.25) 58640 SS $7.29 $7.12 6
62 58643 LOCKWASHER (.375) ACT $1.80 $1.76 6
63 44390T ELBOW Exhaust ACT $599.99 $546.36 2
64 8M0084839 HARNESS ASSEMBLY Extension 866785T01 SS $195.49 $176.10 1
64 866784T01 HARNESS ASSEMBLY Extension ACT $72.99 $68.51
65 862268T1 TUBE ACT $277.49 $249.95 1
66 862268T2 TUBE ACT $287.99 $259.34 1
67 41802 SEAL Rubber ACT $15.99 $15.61 1
