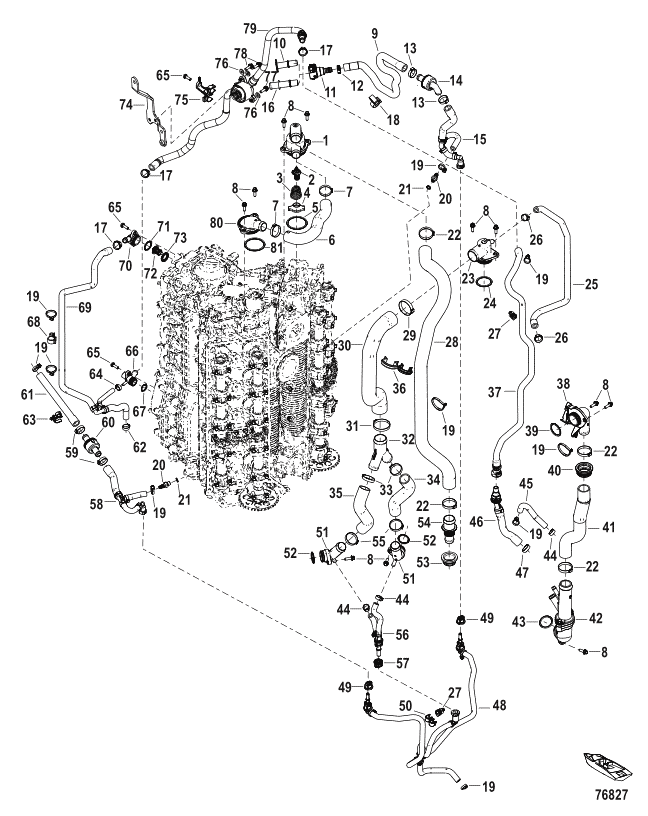

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 8M0228544 THERMOSTAT ASSY 8M0205186 SS $124.99 $112.47 1
2 NSS --------NOT SOLD SEPARATE 60 Degree C $0.00 $0.00 1
3 8M0177702 ----SPRING-THERMOSTAT ACT $11.59 $11.32 1
4 8M0177703 ----RETAINER-THERMST ACT $7.19 $7.03 1
5 8M0214923 ----O RING ACT $3.79 $3.69 1
6 8M0205187 HOSE-CROSSOVER Crossover ACT $19.49 $19.07 1
7 8M0143696 CLAMP ACT $2.89 $2.82 2
8 8M0103806 SCREW ACT $2.39 $2.33 11
9 8M0205188 HOSE ASY-ENG FLSH ACT $79.99 $75.03 1
10 8M0192182 ----PLUG FLUSH OUT ACT $2.39 $2.33 1
11 8M0215873 ----QUICK CONNECT 8M0152434 SS $8.69 $8.49 1
12 848764 ----CLAMP ACT $3.99 $3.91 1
13 855228 ----CLAMP ACT $4.49 $4.39 2
14 NSS --------NOT SOLD SEPARATE Valve-Flushing $0.00 $0.00 1
15 NSS --------NOT SOLD SEPARATE Hose $0.00 $0.00 1
- 8M0192183 FLUSH KIT ACT $21.79 $21.36 1
16 8M0192180 ----FITTING-1/2 - 5/8 1/2" to 5/8" ACT $14.49 $14.14 1
16 8M0192181 ----FITTING 5/8" to 5/8" ACT $8.99 $8.78 1
17 848764 CLAMP ACT $3.99 $3.91 3
18 8M0180032 CLIP ACT $11.89 $11.61 1
19 816311T TIE STRAP ACT $0.60 $0.59 10
20 8M0203912 FITTING ACT $2.39 $2.33 2
21 8M0142523 ----ORING ACT $0.40 $0.40 2
22 888988011 CLAMP ACT $4.69 $4.59 4
23 8M0205190 FITTIN-EXH ACT $21.79 $21.36 1
24 11165 ----O RING ACT $2.00 $1.98 1
25 8M0205192 HOSE-SPRAYER ACT $13.39 $13.07 1
26 848763 CLAMP ACT $2.99 $2.95 2
27 899145 CLIP ACT $3.39 $3.30 2
28 8M0205193 HOSE- DUMP ACT $46.99 $46.18 1
29 8M0141781 CLMP-OETIKER ACT $7.49 $7.32 1
30 8M0205194 HOSE ASY-EXH/HD Water Exhaust Outlet ACT $83.49 $78.24 1
31 8M6001459 ----CLAMP ACT $1.80 $1.76 1
32 NSS --------NOT SOLD SEPARATE Hose Assembly- Exhaust to Head $0.00 $0.00 1
33 8M0143696 ----CLAMP ACT $2.89 $2.82 2
34 NSS --------NOT SOLD SEPARATE Hose-Water Inlet (Port) $0.00 $0.00 1
35 NSS --------NOT SOLD SEPARATE Hose-Water Inlet (Starboard) $0.00 $0.00 1
36 8M0205198 CLIP ACT $12.19 $11.90 1
37 8M0205199 HOSE ASY-UPPR CC Upper Closed Cooling Inlet ACT $20.99 $20.62 1
38 8M0205200 FITTING ASSY ACT $38.49 $37.62 1
39 8M0200181 ----O-RING ACT $6.28 $6.20 1
40 8M0205201 GROMMET ACT $3.29 $3.21 1
41 8M0205202 HOSE-WTR INLET ACT $21.99 $21.53 1
42 8M0207806 STRAINER INLINE ACT $63.49 $59.80 1
43 86614 ----O RING ACT $1.23 $1.22 1
44 8M0204696 CLAMP ACT $2.59 $2.53 3
45 8M0205203 HOSE-FSM INLET ACT $3.59 $3.50 1
46 8M0205204 HOSE ASY-STR/FSM Strainer to Fuel Supply Module ACT $18.99 $18.66 1
47 888988019 CLAMP ACT $4.49 $4.39 1
48 8M0142654 HOSE WATER DRAIN Water Drain ACT $36.49 $35.81 1
49 884546 ----GROMMET ACT $1.99 $1.95 2
50 888523001 CLIP ACT $1.40 $1.37 1
51 8M0205205 FITTING-WATER IN ACT $19.39 $18.92 2
52 86614 ----O RING ACT $1.23 $1.22 2
53 8M0142501 GROMMET ACT $2.29 $2.24 1
54 8M0205206 FITTING-DUMP HOSE ACT $8.99 $8.78 1
55 8M0187145 CLAMP ACT $5.09 $4.98 2
56 8M0142518 HOSE DRAIN Head Drain ACT $9.39 $9.17 1
57 884546 ----GROMMET ACT $1.99 $1.95 1
58 8M0205208 HOSE ASY-BLK DRAN Block Drain (Port) ACT $69.49 $65.22 1
59 855228 ----CLAMP ACT $4.49 $4.39 2
60 8M0205209 ----VALVE ASSY FLUSH ACT $25.69 $25.21 1
61 NSS --------NOT SOLD SEPARATE Hose $0.00 $0.00 1
62 8M0157397 CLAMP OETIKER ACT $1.60 $1.57 1
63 8M0205210 CLIP-2 HOSE ACT $5.39 $5.27 1
64 888988023 CLAMP ACT $7.39 $7.22 1
65 8M0142830 SCREW ACT $0.60 $0.59 3
66 8M0205211 FITTING ACT $17.99 $17.56 1
67 38101 ----O RING ACT $1.80 $1.76 1
68 8M0205212 CLIP ACT $2.19 $2.14 1
69 8M0205213 HOSE ASY-CC COOLR Cooler Out ACT $36.49 $35.68 1
70 8M0205214 FITTING ACT $14.49 $14.14 1
71 8M0204650 ----O RING ACT $2.89 $2.82 1
72 8M0223832 THERMOSTAT 8M0205215 SS $19.39 $18.92 1
73 887978 ----GASKET ACT $3.39 $3.30 1
74 8M0215070 BRACKET-POPPET ACT $228.10 $211.10 1
75 8M0205216 CLIP-FLUSH HOSE ACT $9.49 $9.27 1
76 43430 WASHER ACT $3.19 $3.11 3
77 8M0103807 SCREW ACT $2.39 $2.33 1
78 8M0103805 SCREW ACT $2.49 $2.43 2
79 8M0215069 POPPET ASSY Lower Closed Cooling Inlet NLA $0.00 $0.00 1
80 8M0205218 FITTING ACT $15.69 $15.31 1
81 8M0214923 ----O RING ACT $3.79 $3.69 1
- 8M0203874 LB-V10 OB RACE ACT $26,403.11 $23,005.27 1
- 8M0200003 PWHRHD GASKET SET ACT $510.49 $464.85 1
