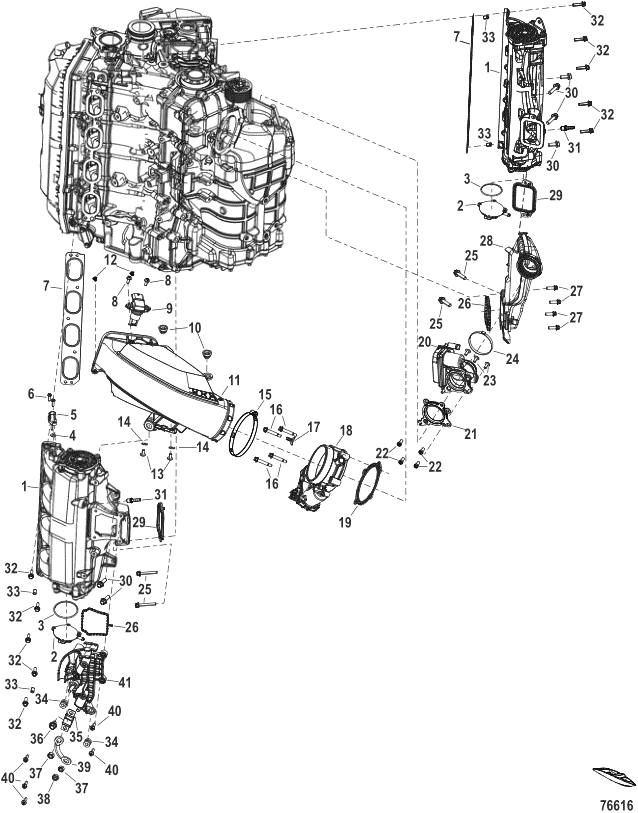

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0219737 | MANIFOLD ASSEMBLY Port | ACT | $2,814.28 | $2,519.87 | 1 | |||
| 1 | 8M0219738 | MANIFOLD ASSEMBLY Starboard | ACT |
|
$2,814.28 | $2,519.87 | 1 | ||
| 2 | 8M0219118 | ----COVER CAC Port | ACT | $54.03 | $51.63 | 1 | |||
| 2 | 8M0219119 | ----COVER CAC Starboard | ACT |
|
$56.50 | $54.00 | 1 | ||
| 3 | NSS | ----------------NOT SOLD SEPARATE O-Ring |
|
$0.00 | $0.00 | 2 | |||
| 4 | 8M0142578 | GASKET MAT Sensor | ACT | $0.80 | $0.79 | 1 | |||
| 5 | 891663001 | SENSOR Temperature | ACT | $228.49 | $205.70 | 1 | |||
| 6 | 40056107 | SCREW (M5 x 16) | ACT | $3.99 | $3.91 | 2 | |||
| 7 | 8M0175149 | GASKET Intake | ACT | $23.89 | $23.41 | 2 | |||
| 8 | 8M0177539 | SCREW (M6 x 14) Torx Pan HD | ACT | $1.10 | $1.08 | 2 | |||
| 9 | 8M0210492 | SENSOR TMAPH | ACT | $418.59 | $387.39 | 1 | |||
| 10 | 8M0096302 | GROMMET | ACT | $0.90 | $0.88 | 2 | |||
| 11 | 8M0210491 | COLD AIR INTAKE | ACT |
|
$270.31 | $250.17 | 1 | ||
| 12 | 8M0159629 | ----CLIP PUSH IN | ACT | $3.99 | $3.91 | 2 | |||
| 13 | NSS | --------NOT SOLD SEPARATE Screw |
|
$0.00 | $0.00 | 2 | |||
| 14 | 4002314 | ----WASHER | ACT | $3.69 | $3.59 | 2 | |||
| 15 | 8M0199980 | CLAMP Hose | ACT | $8.99 | $8.78 | 1 | |||
| 16 | 8M0210478 | SCREW | ACT | $47.43 | $46.75 | 4 | |||
| 17 | 8M0210497 | BRACKET Harness | ACT | $29.50 | $29.08 | 1 | |||
| 18 | 8M0199834 | THROTTLE BODY ASSEMBLY | ACT | $1,699.99 | $1,522.55 | 1 | |||
| 19 | 8M0210476 | ISOLATOR Throttle Body | ACT | $34.15 | $33.67 | 1 | |||
| 20 | 8M0159630 | VALVE Electronic Boost Control | ACT |
|
$542.99 | $494.32 | 1 | ||
| 21 | 8M0162821 | ----ISOLATER Bypass | ACT | $114.49 | $103.08 | 3 | |||
| 22 | 8M0161440 | ----SCREW (M6 x 14) | ACT | $1.00 | $0.98 | 4 | |||
| 23 | 88552514 | ----SCREW (M6 x 14 MM) Stainless Steel | ACT | $4.09 | $4.00 | 3 | |||
| 24 | 888988025 | CLAMP (63.5 mm) | ACT | $4.45 | $4.39 | 1 | |||
| 25 | 8M0103810 | SCREW (M6 x 45 MM) Stainless Steel | ACT | $4.49 | $4.39 | 4 | |||
| 26 | 8M0159633 | GASKET BYPASS DUCT | ACT | $5.39 | $5.27 | 2 | |||
| 27 | 8M0103806 | SCREW (M6 x 20 MM) Stainl | ACT | $2.39 | $2.33 | 4 | |||
| 28 | 8M0220976 | BYPASS DUCT ASSEMBLY | 8M0159631 | SS |
|
$335.23 | $310.25 | 1 | |
| 29 | 8M0159611 | GASKET CAC INLET | ACT | $15.59 | $15.22 | 2 | |||
| 30 | 8M0159635 | SCREW M8 x 25 HEX FLANGE HD | ACT | $2.19 | $2.14 | 6 | |||
| 31 | 8M0180507 | FITTING | ACT | $13.89 | $13.56 | 2 | |||
| 32 | 8M0103807 | SCREW (M6 x 25 mm) Stainl | ACT | $2.39 | $2.33 | 10 | |||
| 33 | 8M0084726 | PIN Dowel | ACT | $5.09 | $4.98 | 4 | |||
| 34 | 8M0153609 | GROMMET | ACT | $5.59 | $5.47 | 2 | |||
| 35 | 8M0161644 | FUSE 200A Blue | ACT | $64.49 | $60.68 | 1 | |||
| 36 | 88552612 | SCREW (M8 x 12) | ACT | $3.09 | $3.01 | 1 | |||
| 37 | 8M0146003 | NUT M8 x 1.25 Hex | ACT | $1.00 | $0.98 | 2 | |||
| 38 | 401388 | NUT (M8) Stainless Steel | ACT | $3.06 | $3.00 | 1 | |||
| 39 | 8M0212643 | BUS BAR ASSEMBLY | ACT | $22.17 | $21.85 | 1 | |||
| 40 | 8M0080651 | SCREW (M6 x 20) | ACT | $1.30 | $1.27 | 5 | |||
| 41 | 8M0199448 | COVER Charge Air Cooler | ACT | $121.50 | $112.46 | 1 | |||
| - | 8M0228561 | LONG BLOCK ASSEMBLY | 8M0210470 | SS |
|
$24,467.23 | $21,318.51 | 1 | |
| - | 8M0210444 | GASKET SET Longblock | ACT | $413.09 | $382.31 | 1 |
