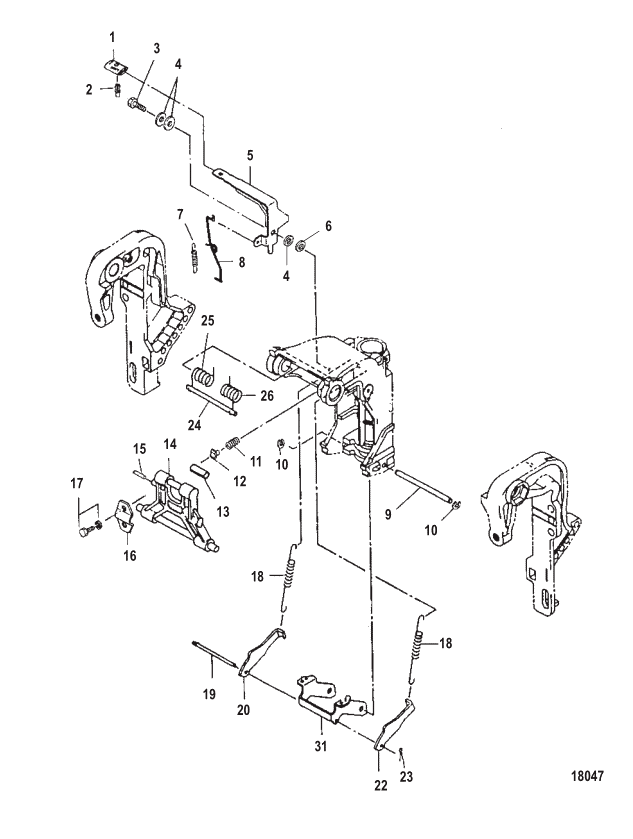

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0183798 | GRIP | 853775 | SS |
|
$10.40 | $10.15 | 1 | |
| 2 | 8M0051399 | BUTTON | 853776 | SS |
|
$6.70 | $6.54 | 1 | |
| 3 | 803790001 | SHAFT/BOLT Reverse Lock Lever | 804049 | SS |
|
$20.33 | $19.97 | 1 | |
| 4 | 16826 | WASHER Stainless Steel | ACT | $3.30 | $3.22 | 3 | |||
| 5 | 8M0059835 | LEVER Tilt Stopper | 804048 | REP |
|
$52.25 | $50.26 | 1 | |
| 6 | 953921 | WASHER | 895118002 | SS |
|
$5.60 | $5.47 | 1 | |
| 7 | 8040246 | SPRING | ACT | $9.00 | $8.78 | 1 | |||
| 8 | 804050 | LINK | ACT | $11.10 | $10.83 | 1 | |||
| 9 | 804046003 | SHAFT Reverse Lock | ACT | $7.59 | $7.42 | 1 | |||
| 10 | 160572 | E RING | ACT | $5.50 | $5.37 | 2 | |||
| 11 | 953832 | SPRING | ACT | $5.70 | $5.56 | 1 | |||
| 12 | 853774 | STOP | ACT | $10.40 | $10.15 | 1 | |||
| 13 | 8251131 | BRACKET | ACT | $5.70 | $5.56 | 1 | |||
| 14 | 8M0230676 | STOPPER Tilt | 825112006 | SS |
|
$77.67 | $74.70 | 1 | |
| 15 | 9521813 | PIN Spring | ACT | $12.10 | $11.80 | 1 | |||
| 16 | 879194006 | SET PLATE | 162101 | SS |
|
$14.10 | $13.75 | 1 | |
| 17 | 8M0098607 | BOLT | 823042052 | SS |
|
$5.10 | $4.98 | 2 | |
| 18 | 8040244 | SPRING | ACT |
|
$17.90 | $17.46 | 2 | ||
| 18 | 8040245 | SPRING | ACT |
|
$16.75 | $16.45 | 2 | ||
| 19 | 804047 | ROD Reverse Lock | ACT | $8.20 | $8.00 | 1 | |||
| 20 | 804044 | LOCK Reverse (Starboard) | ACT | $16.92 | $16.62 | 1 | |||
| 21 | 804045004 | ARM Reverse Lock | ACT | $33.92 | $33.31 | 1 | |||
| 22 | 8040441 | LOCK Reverse (Port) | ACT | $16.92 | $16.62 | 1 | |||
| 23 | 8150261 | COTTER PIN | ACT | $3.00 | $2.93 | 1 | |||
| 24 | 804049001 | SHAFT | ACT | $21.58 | $21.20 | 1 | |||
| 25 | 824024012 | SPRING | 804024009 | SS |
|
$39.75 | $39.04 | 1 | |
| 26 | 824024011 | SPRING | 804024010 | SS |
|
$44.83 | $44.03 | 1 |
