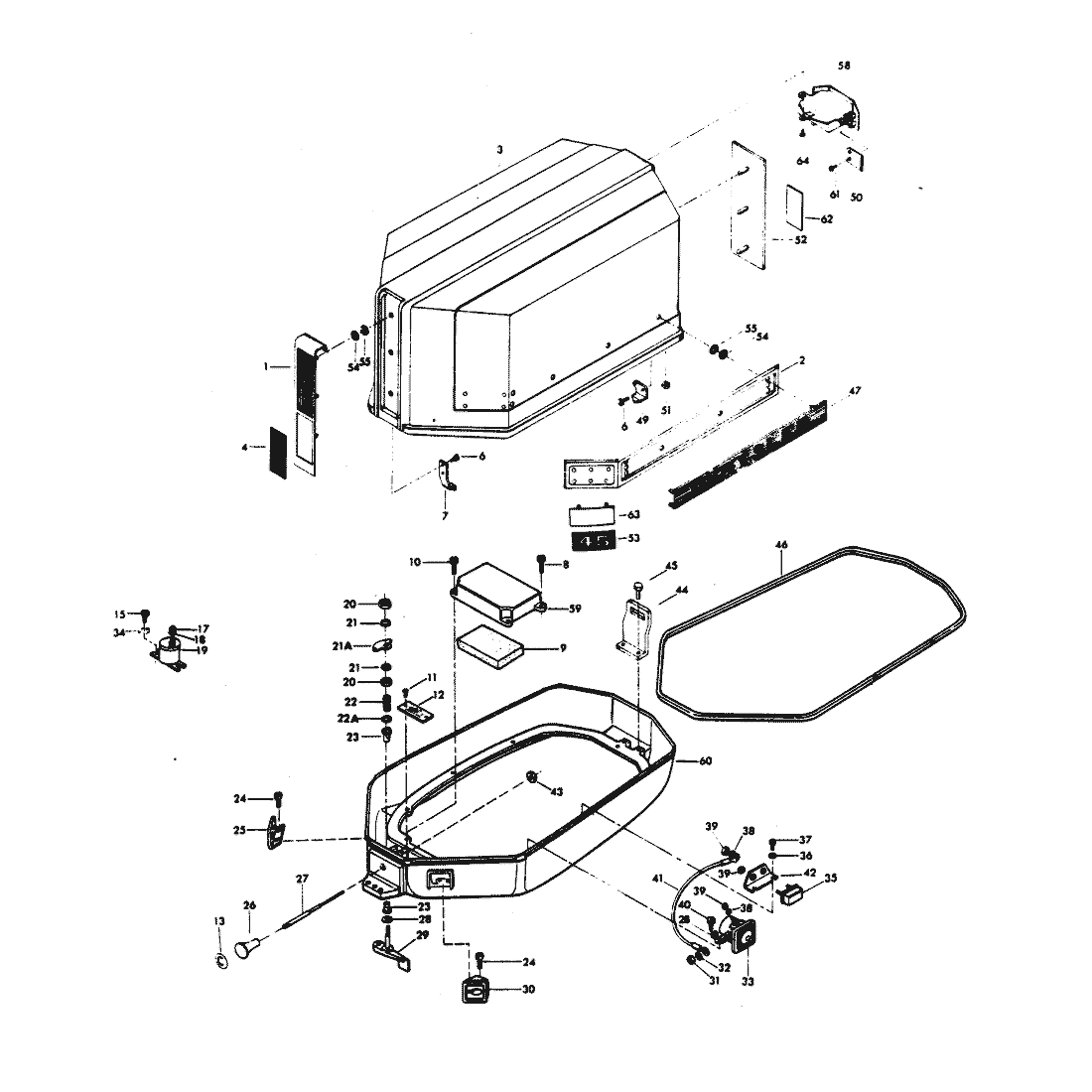

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FK606711 | PLATE, FRONT | F463711-1 | SS |  | $16.43 | $16.09 | 1 | |
| 2 | F366392 | SIDE PLATE | NLA | | $0.00 | $0.00 | 2 | ||
| 3 | FS463712 | ENGINE COVER | NLA | | $0.00 | $0.00 | 1 | ||
| 4 | FA463892 | INSERT, FRONT PLATE, U.S.A. FOR HAND START MODELS | NLA | | $0.00 | $0.00 | 1 | ||
| - | NSS | INSERT, FRONT PLATE, CANADA FOR HAND START MODELS | | $0.00 | $0.00 | 1 | |||
| - | FA466892 | INSERT, FRONT PLATE, U.S.A., FOR ALTERNATOR MODELS | NLA | | $0.00 | $0.00 | 1 | ||
| - | FA466893 | INSERT, FRONT PLATE, CANADA, FOR ALTERNATOR MODELS | NLA | | $0.00 | $0.00 | 1 | ||
| - | FA467892 | INSERT, FRONT PLATE, U.S.A., FOR C.D. MODELS | NLA | | $0.00 | $0.00 | 1 | ||
| - | FA467893 | INSERT, FRONT PLATE, CANADA, FOR C.D. MODELS | NLA | | $0.00 | $0.00 | 1 | ||
| 6 | F1475 | FILL HD SCREW, 10 - 24 X 1/2 | NLA | | $0.59 | $0.58 | 4 | ||
| 7 | FA366778 | ENGINE COVER RETAINER FORWARD W/SCREWS AND NUTS | NLA | | $9.85 | $9.60 | 1 | ||
| 8 | 28636 | HEX HD SCREW, 1/4 - 20 X 3/4 | F1864 | SS | | $1.70 | $1.66 | 2 | |
| 9 | F307860 | INTAKE SILENCER | NLA | | $1.63 | $1.60 | 1 | ||
| 10 | 819110100 | HEX HD SCREW, 1/4 - 20 X 1 | F1953 | SS | | $0.50 | $0.49 | 2 | |
| 11 | 20314 | RD HD SCREW, 2 X 3/16 | F1293 | SS | | $0.37 | $0.37 | 2 | |
| 12 | FA77395-5 | IDENTIFICATION PLATE W/SCREWS, U.S.A. | NLA | | $0.00 | $0.00 | 1 | ||
| - | NSS | IDENTIFICATION PLATE W/SCREWS, CANADA | | $0.00 | $0.00 | 1 | |||
| 13 | F458677 | INSERT, CHOKE KNOB | NLA | | $2.57 | $2.51 | 1 | ||
| 15 | 820628 | HEX SLOT HD SCREW, 1/4 - 20 X 5/8 | F1993 | SS | | $1.00 | $0.98 | 2 | |
| 17 | F1647 | HEX NUT, 8 - 32 | NLA | | $0.56 | $0.55 | 1 | ||
| 18 | F8056 | SPRING LOCKWASHER | NLA | | $1.16 | $1.14 | 1 | ||
| 19 | 817760A2 | CHOKE SOLENOID | NLA | | $51.08 | $48.55 | 1 | ||
| 20 | 8M0204668 | HEX NUT, 5/16 - 18 | F1515 | SS | | $3.70 | $3.61 | 2 | |
| 21 | 53166 | SPRING LOCKWASHER | F8096 | SS | | $1.70 | $1.66 | 2 | |
| 21A | F89777-1 | LATCH CAM | NLA | | $3.78 | $3.71 | 1 | ||
| 22 | F183300 | SPRING | NLA | | $1.89 | $1.84 | 1 | ||
| 22A | 34437 | PLAIN WASHER | F1987 | SS | | $2.80 | $2.74 | 1 | |
| 23 | 26841 | BEARING, LATCH SHAFT | F307818 | SS | | $7.30 | $7.12 | 2 | |
| 24 | 852453 | PAN HD SCREW, 10 - 24 X 9/16 | F1733 | SS | | $1.40 | $1.37 | 3 | |
| 25 | F311189-1 | BUSHING, CABLE ENTRY | NLA | | $0.00 | $0.00 | 1 | ||
| 26 | F286547 | CHOKE, KNOB | NLA | | $6.81 | $6.68 | 1 | ||
| 27 | F433503 | CHOKE CABLE | NLA | | $64.10 | $61.66 | 1 | ||
| 28 | 8M0214930 | PLAIN WASHER | F8094 | SS | | $1.00 | $0.98 | 1 | |
| 29 | FA328763 | COVER LATCH HANDLE W/SHAFT | NLA | | $22.10 | $21.71 | 1 | ||
| 30 | FA366953 | BUSHING STARTER HANDLE, FOR HAND START MODELS | NLA | | $15.02 | $14.65 | 1 | ||
| - | 828763 | BUSHING ELECTRIC CABLE ENTRY, FOR ELECTRIC START MODELS | F310189 | SS | | $5.10 | $4.98 | 1 | |
| 31 | 28770 | HEX NUT, 5/16 - 24 | F1615 | SS | | $3.50 | $3.42 | 2 | |
| 32 | 53166 | SPRING LOCKWASHER | F8096 | SS | | $1.70 | $1.66 | 2 | |
| 33 | 803822T | STARTER RELAY | F177917 | SS | | $49.38 | $48.49 | 1 | |
| 34 | 26992 | SPRING LOCKWASHER | F8083 | SS | | $1.20 | $1.18 | 2 | |
| 35 | 898103194 | CIRCUIT BREAKER | F91460-2 | SS | | $19.42 | $19.07 | 1 | |
| 36 | 89302 | PLAIN WASHER | F8011 | SS | | $1.70 | $1.66 | 2 | |
| 37 | 852453 | PAN HD SCREW, 10 - 24 X 9/16 | F1733 | SS | | $1.40 | $1.37 | 2 | |
| 38 | 26996 | SPRING LOCKWASHER | F1975 | SS | | $1.20 | $1.18 | 3 | |
| 39 | 68219 | HEX NUT, 10 - 32 | F1513 | SS | | $2.90 | $2.83 | 5 | |
| 40 | 49668 | HEX HD SCREW, 1/4 - 20 X 3/4 | F1238 | SS | | $1.10 | $1.08 | 8 | |
| 41 | F307683 | CIRCUIT BREAKER WIRE | NLA | | $4.52 | $4.42 | 1 | ||
| 42 | F91446-2 | CIRCUIT BREAKER BRACKET | F91446-1 | SS | | $3.85 | $3.79 | 1 | |
| 43 | F1738 | HEX JAM NUT, 3/8 - 24 | NLA | | $0.84 | $0.83 | 1 | ||
| 44 | F458774 | BRACKET RETAINER REAR | NLA | | $7.30 | $7.16 | 1 | ||
| 45 | 49668 | HEX CAP SCREW, 1/4 - 20 X 3/4 | F1238 | SS | | $1.10 | $1.08 | 2 | |
| 46 | F85756 | SUPPORT PLATE PACKING | NLA | | $26.76 | $26.27 | 1 | ||
| 47 | F463366 | NAME PLATE, "CHRYSLER" | NLA | | $0.00 | $0.00 | 2 | ||
| 49 | FA458480 | ENGINE COVER RETAINER W/SCREWS AND NUTS | NLA | | $4.89 | $4.76 | 1 | ||
| 50 | F463864 | RETAINER, TILT HANDLE | NLA | | $0.58 | $0.57 | 2 | ||
| 51 | F7009 | HEX NUT, 10 - 24 | F7011 | SS | | $3.30 | $3.22 | 4 | |
| 52 | F433180-1 | TRIM, REAR | NLA | | $0.00 | $0.00 | 1 | ||
| 53 | FA486385 | INSERT, PLATE SIDE | NLA | | $0.00 | $0.00 | 2 | ||
| 54 | F85735-1 | SEAL | NLA | | $0.55 | $0.54 | 24 | ||
| 55 | F1753 | FASTENER | NLA | | $0.61 | $0.60 | 24 | ||
| 58 | 817814A1 | TILT HANDLE | F463269 | SS | | $18.53 | $18.15 | 1 | |
| 59 | FA307779 | BAFFLE, AIR INTAKE W/SILENCER | NLA | | $16.01 | $15.66 | 1 | ||
| 60 | NSS | SUPPORT PLATE, FOR HAND START MODELS | | $0.00 | $0.00 | 1 | |||
| - | F307038 | SUPPORT PLATE, FOR ELECTRIC START MODELS | NLA | | $172.41 | $162.37 | 1 | ||
| 61 | F1728 | PAN HD SELF-TAPPING SCREW | NLA | | $0.47 | $0.46 | 4 | ||
| 62 | NSS | INSERT, TRIM REAR | | $0.00 | $0.00 | 1 | |||
| 63 | F485512 | INSERT, PLATE | NLA | | $0.00 | $0.00 | 2 | ||
| 64 | F2025 | PAN HD SCREW, 10 X 5/8 | NLA | | $0.58 | $0.57 | 1 | ||
| - | F191993-1 | BRACKET, CHOKE CABLE (NOT SHOWN) | NLA | | $1.68 | $1.65 | 1 | ||
| - | NSS | DECAL, "MAGNAPOWER IGNITION" (NOT SHOWN) | | $0.00 | $0.00 | 1 |
