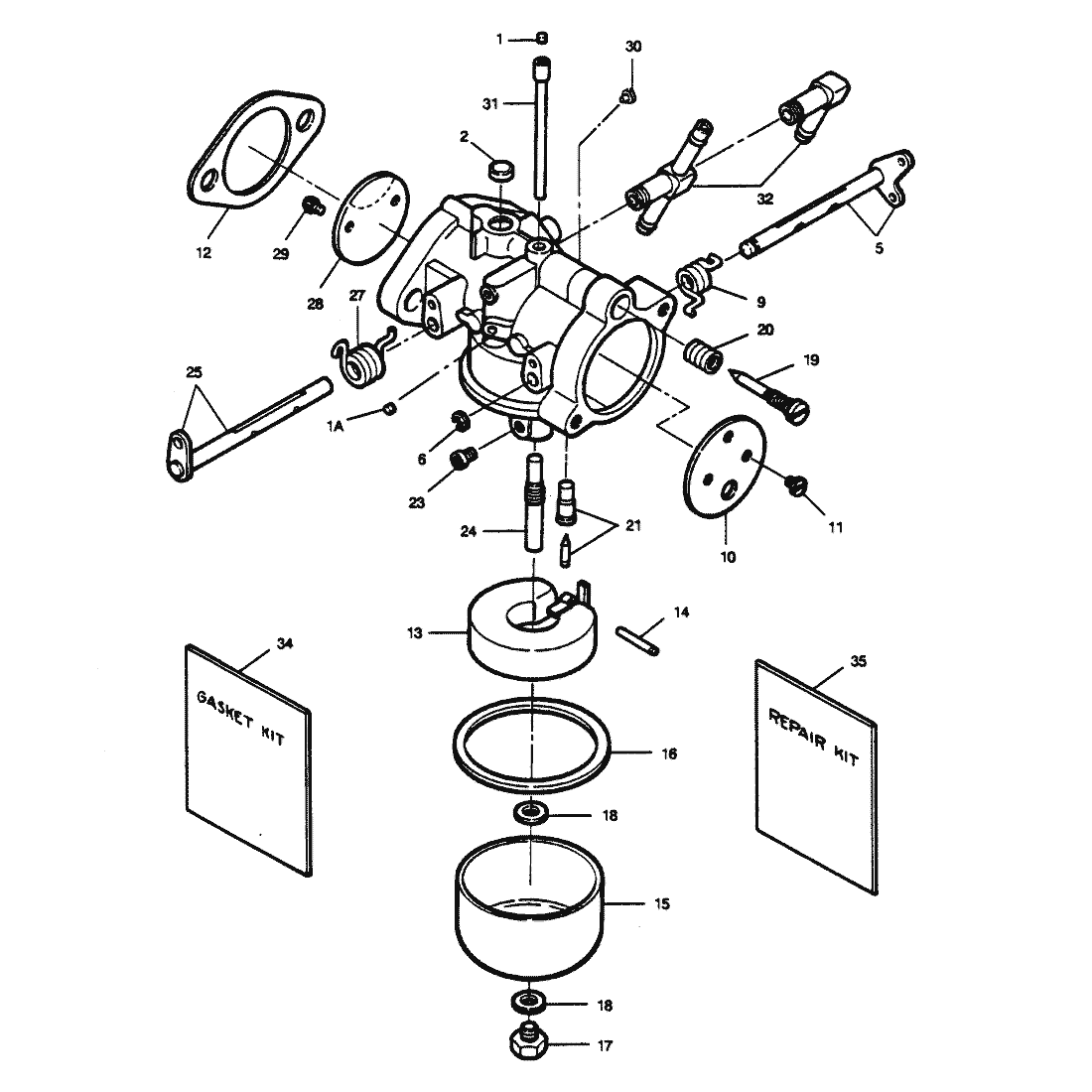

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FO10588 | PLUG | ACT | $7.50 | $7.32 | 1 | |||
| 1A | FO10588 | PLUG | ACT | $7.50 | $7.32 | 1A | |||
| 2 | FO16128 | PLUG | ACT | $3.80 | $3.71 | 1 | |||
| 5 | F10299 | SHAFT, CHOKE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | F10241 | "E" RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | F10300 | SPRING | ACT | $4.50 | $4.39 | 1 | |||
| 10 | F10301 | SHUTTER, CHOKE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 803176 | SCREW | FO8942 | SS |
|
$3.60 | $3.52 | 2 | |
| 12 | 828925 | GASKET | F85906 | SS |
|
$2.39 | $2.33 | 1 | |
| 13 | 891730A01 | FLOAT | FO13554 | SS |
|
$37.58 | $36.91 | 1 | |
| 14 | FO13944 | PIN | ACT | $5.60 | $5.47 | 1 | |||
| 15 | F10333 | BOWL | F10127 | SS |
|
$33.67 | $33.06 | 1 | |
| 16 | FO15623 | GASKET | ACT | $4.30 | $4.20 | 1 | |||
| 17 | 5128 | SCREW | FO13945 | SS |
|
$0.00 | $0.00 | 1 | |
| 18 | FO2510 | GASKET | ACT | $2.39 | $2.33 | 2 | |||
| 19 | F10307 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 27160 | SPRING | FO11103 | SS |
|
$4.10 | $4.00 | 1 | |
| 21 | F10265 | INLET NEEDLE & SEAT | FK10309 | SS |
|
$16.75 | $16.41 | 1 | |
| 23 | 3794 | MAIN FUEL JET (.074) SEA LEVEL - 2500 FT. | F10212 | SS |
|
$4.10 | $4.00 | 1 | |
| - | 6207 | ----072) 2500 - 5000 FT. | F10270 | SS |
|
$14.10 | $13.75 | 1 | |
| - | 6030 | ----070) 5000 - 7500 FT. | F10214 | SS |
|
$4.10 | $4.00 | 1 | |
| - | 6029 | ----068) 7500 - 10000 FT. | F10215 | SS |
|
$4.10 | $4.00 | 1 | |
| 24 | F10302 | NOZZLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | F10305 | SHAFT, THROTTLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | F10312 | SPRING | ACT | $2.50 | $2.44 | 1 | |||
| 28 | F10315 | SHUTTER, THROTTLE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 803176 | SCREW | FO8942 | SS |
|
$3.60 | $3.52 | 2 | |
| 30 | F10316 | JET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | F10319 | TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 64706001 | ELBOW (MIDDLE & BOTTOM CARBS) | F85314-1 | SS |
|
$34.85 | $34.24 | 1 | |
| - | F84314-2 | ELBOW (TOP CARB) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 809736A1 | GASKET SET | FK10323 | SS |
|
$10.00 | $9.76 | 1 | |
| 35 | FK10324 | REPAIR KIT | ACT | $93.50 | $89.93 | 1 | |||
| - | 803920T | CARBURETOR COMPLETE (TOP) WB-101A | F831061 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 803921T | CARBURETOR COMPLETE (MIDDLE) WB-100A | F832061 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 803921T | CARBURETOR COMPLETE (BOTTOM) WB-100A | F832061 | SS |
|
$0.00 | $0.00 | 1 |
