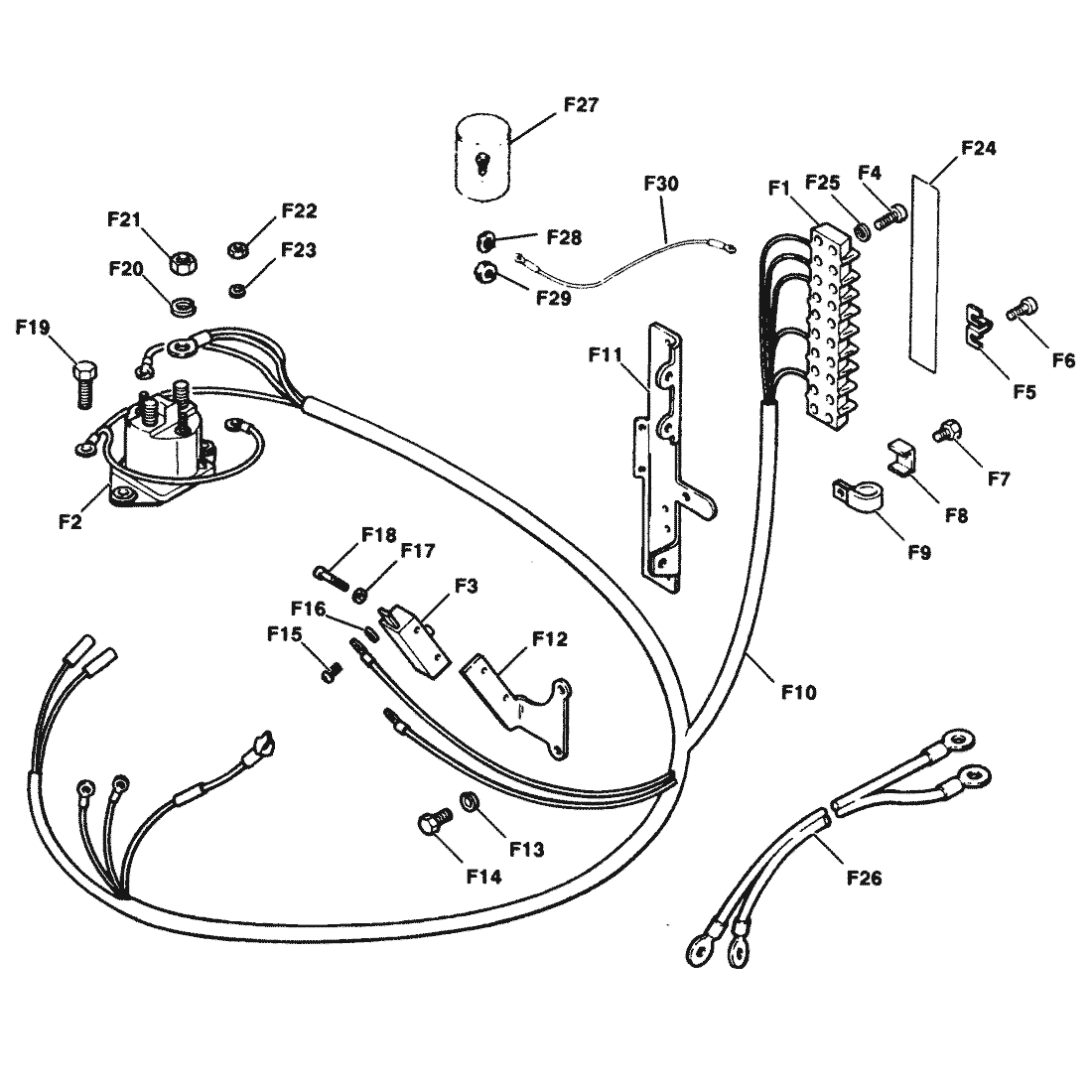

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| F1 | FA616497 | BLOCK, TERMINAL (2 ROW - 8 POSITION) | NLA |  | $22.21 | $21.80 | 1 | ||
| F2 | 817109A3 | RELAY, STARTER | F460917-1 | SS | | $79.67 | $76.63 | 1 | |
| F3 | F84449 | SWITCH, STARTER INTERLOCK | NLA | | $16.01 | $15.73 | 1 | ||
| F4 | 41069 | SCREW, 10 - 24 X 3/4 | F1648 | SS | | $1.90 | $1.86 | 2 | |
| F5 | F307317 | CLIP, TERMINAL JUMPER | NLA | | $1.16 | $1.14 | 2 | ||
| F6 | 41069 | SCREW, 10 - 24 X 3/4 | F1648 | SS | | $1.90 | $1.86 | 2 | |
| F7 | 34939 | SCREW, 1/4 - 20 X 1/2 | F1734 | SS | | $1.63 | $1.59 | 1 | |
| F8 | F438668 | RETAINER, CONTROL CABLE | NLA | | $1.42 | $1.38 | 1 | ||
| F9 | F289446-1 | CLAMP, CONTROL CABLE | NLA | | $1.96 | $1.92 | 1 | ||
| F10 | 817459A1 | HARNESS, WIRING | NLA | | $75.78 | $72.00 | 1 | ||
| F11 | F438493 | BRACKET, TERMINAL BLOCK | NLA | | $15.34 | $15.08 | 1 | ||
| F12 | F749551-1 | BRACKET, STARTER INTERLOCK SWITCH | NLA | | $20.82 | $20.46 | 1 | ||
| F13 | 26996 | WASHER | F1975 | SS | | $1.20 | $1.18 | 2 | |
| F14 | 819110100 | SCREW, 1/4 - 20 X 1 | F1532 | SS | | $0.50 | $0.49 | 2 | |
| F15 | 69080 | SCREW, 6 - 32 X 1/4 | F1645 | SS | | $1.84 | $1.80 | 2 | |
| F16 | F1704 | WASHER | NLA | | $0.74 | $0.73 | 2 | ||
| F17 | 27882 | WASHER | F8088 | SS | | $1.16 | $1.14 | 2 | |
| F18 | F2193 | SCREW, 6 - 32 X 7/8 | NLA | | $0.75 | $0.74 | 2 | ||
| F19 | 820628 | SCREW, 1/4 - 20 X 5/8 | F1993 | SS | | $1.00 | $0.98 | 2 | |
| F20 | 53166 | WASHER | F8096 | SS | | $1.70 | $1.66 | 2 | |
| F21 | 8M0204668 | NUT, 5/16 - 18 | F1515 | SS | | $3.70 | $3.61 | 2 | |
| F22 | 68219 | NUT, 10 - 32 | F1513 | SS | | $2.90 | $2.83 | 2 | |
| F23 | 26996 | WASHER | F1975 | SS | | $1.20 | $1.18 | 1 | |
| F24 | F529398-1 | DECAL, WIRING | NLA | | $1.84 | $1.81 | 1 | ||
| F25 | 26996 | LOCKWASHER | F1975 | SS | | $1.20 | $1.18 | 2 | |
| F26 | 8M0210761 | CABLE, BATTERY | F381896-4 | SS | | $124.92 | $117.64 | 1 | |
| F27 | 889273 | SOLENOID, CHOKE | F654924-1 | SS | | $64.75 | $62.28 | 1 | |
| F28 | F8056 | SPRING LOCKWASHER | NLA | | $1.16 | $1.14 | 1 | ||
| F29 | F1647 | NUT, 8 - 32 | NLA | | $0.56 | $0.55 | 1 | ||
| F30 | 819210A1 | WIRE, CHOKE SOLENOID | NLA | | $12.32 | $12.02 | 1 |
