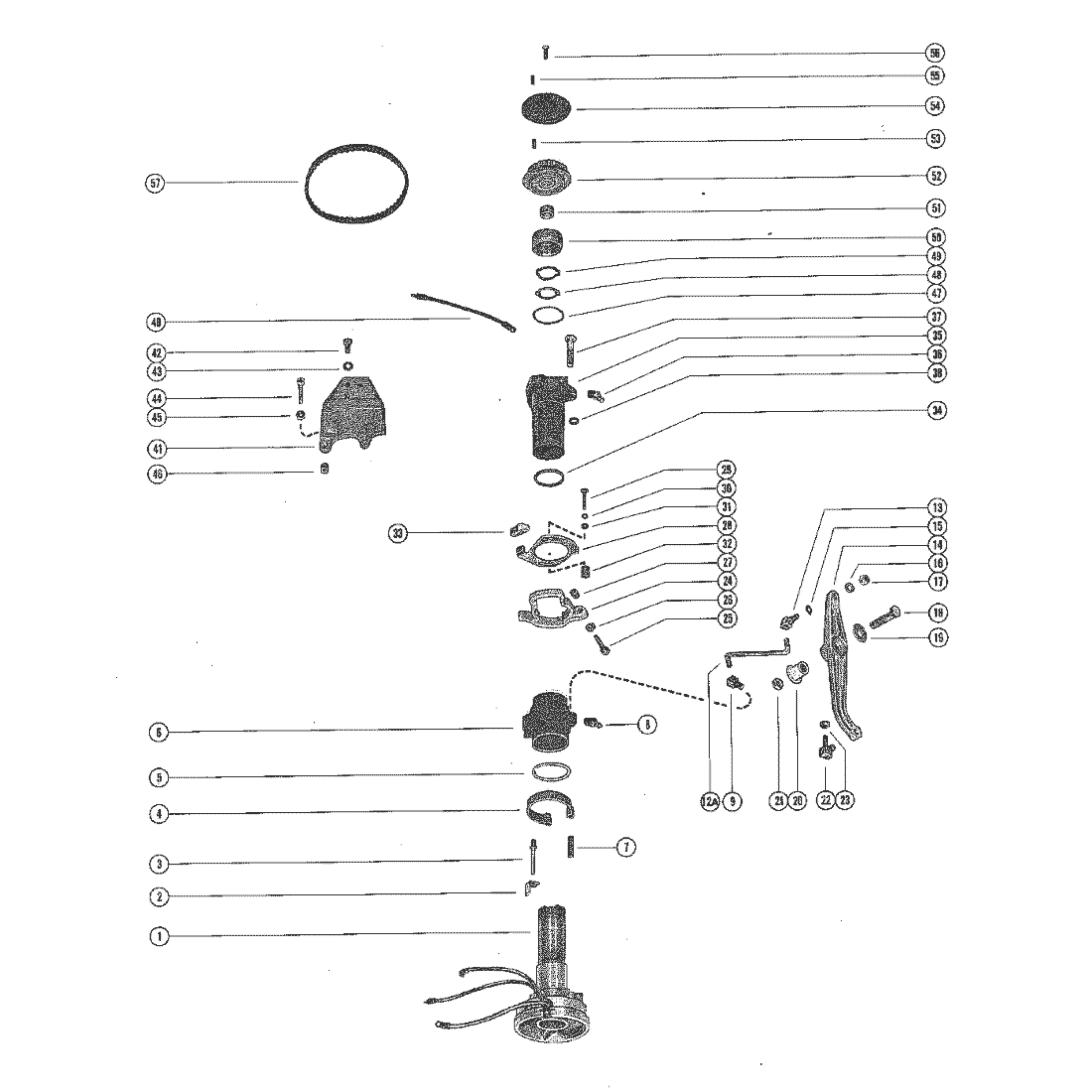

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3736A79 | HOUSING ASSEMBLY, DISTRIBUTOR | 3736A77 | SS |
|
$659.93 | $620.87 | 1 | |
| 2 | 32197 | STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 27962 | PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 27944 | SPRING, HORSESHOE - DISTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 53540 | WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 55804A1 | ECONIZER COLLAR ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 27961 | --PIN, ECONOMIZER COLLAR - SPRING RETAINER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 25094 | --FITTING, GREASE - ECONOMIZER COLLAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 27947 | SWIVEL, LINKAGE - ECONOMIZER COLLAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12A | 67469 | ROD, LINK - UPPER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 27948 | SWIVEL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 78992 | LEVER, THROTTLE CONTROL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 4416A2 | WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL | 3995 | SS |
|
$0.00 | $0.00 | 1 | |
| 16 | 8M0204649 | WASHER, THROTTLE CONTROL LEVER SWIVEL | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| 17 | 35888 | NUT, UPPER LINK ROD THROTTLE CONTROL LEVER | ACT | $6.90 | $6.73 | 1 | |||
| 18 | 31830 | SCREW | 37559 | SS |
|
$1.57 | $1.53 | 1 | |
| 19 | 8M0042641 | WASHER, THROTTLE CONTROL LEVER SCREW | 29395 | SS |
|
$1.70 | $1.66 | 1 | |
| 20 | 45818 | BUSHING, THROTTLE CONTROL LEVER SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 8M0204726 | NUT, THROTTLE CONTROL LEVER SCREW | 20509 | SS |
|
$1.80 | $1.76 | 1 | |
| 22 | 37587 | SWIVEL, LOWER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 35888 | NUT, THROTTLE CABLE TO LOWER SWIVEL | ACT | $6.90 | $6.73 | 1 | |||
| 24 | 48692 | COLLAR, THROTTLE ACTUATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 48675 | SCREW, ADJUSTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 64015 | NUT | ACT |
|
$2.81 | $2.75 | 1 | ||
| 27 | 52023 | CAP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 48671 | PLATE, THROTTLE ACTUATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 37892 | SCREW | NLA |
|
$1.32 | $1.29 | 2 | ||
| 30 | 30164 | WASHER | ACT |
|
$2.50 | $2.44 | 2 | ||
| 31 | 26996 | LACKWASHER | ACT |
|
$1.20 | $1.18 | 2 | ||
| 32 | 48674 | SPACER, THROTTLE ACTUATOR PLATE SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 33 | 58454 | CAM, THROOTLE ACTUATOR PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 46246 | WASHER, ADAPTOR - DISTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 66165A2 | ADAPTOR ASSEMBLY, DISTRIBUTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | 25094 | FITTING, GREASE - DISTRUBUTOR ADAPTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 37 | 73657 | SCREW | 20362 | SS |
|
$3.40 | $3.32 | 3 | |
| 38 | 20084 | WASHER, DISTRIBUTOR HOUSING SCREW | ACT | $2.83 | $2.77 | 3 | |||
| 40 | 93388A1 | WIRE, GROUND | 66008A1 | SS |
|
$13.21 | $12.88 | 1 | |
| 41 | 55805 | BRACKET, STOP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 42 | 28636 | SCREW | ACT |
|
$1.80 | $1.76 | 2 | ||
| 43 | 35462 | WASHER, STOP BRACKET FASTENING SCREW | ACT | $1.80 | $1.76 | 2 | |||
| 44 | 64022 | SCREW, STOP BRACKET ADJUSTING (2 1/8") | ACT | $3.70 | $3.61 | 3 | |||
| 45 | 64015 | NUT, STO BRACKET ADJUSTING SCREW | ACT | $2.81 | $2.75 | 3 | |||
| 46 | 52023 | CAP, NYLON - STOP BRACXKET ADJUSTING SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 47 | 27939 | WASHER, SIDTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 48 | 27960 | TAB WASHER, ADAPTOR CAP FASTENING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 49 | 27959 | WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 50 | 54567 | CAPM DISTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 51 | 47250 | SPACER, DRIVE PULLEY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 52 | 29906A1 | DRIVEN PULLEY ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 53 | 29908 | --PIN, ROLL - FLANGE LOCATING | NLA |
|
$3.10 | $3.05 | 1 | ||
| 54 | 29907 | FLANGE, DRIVEN PULLEY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 55 | 29910 | KEY, DISTRUBUTOR DRIVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 56 | 68554 | SCREW, PULLEY CLAMPING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 57 | 20140 | BELT, TIMING | NLA |
|
$0.00 | $0.00 | 1 |
