| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

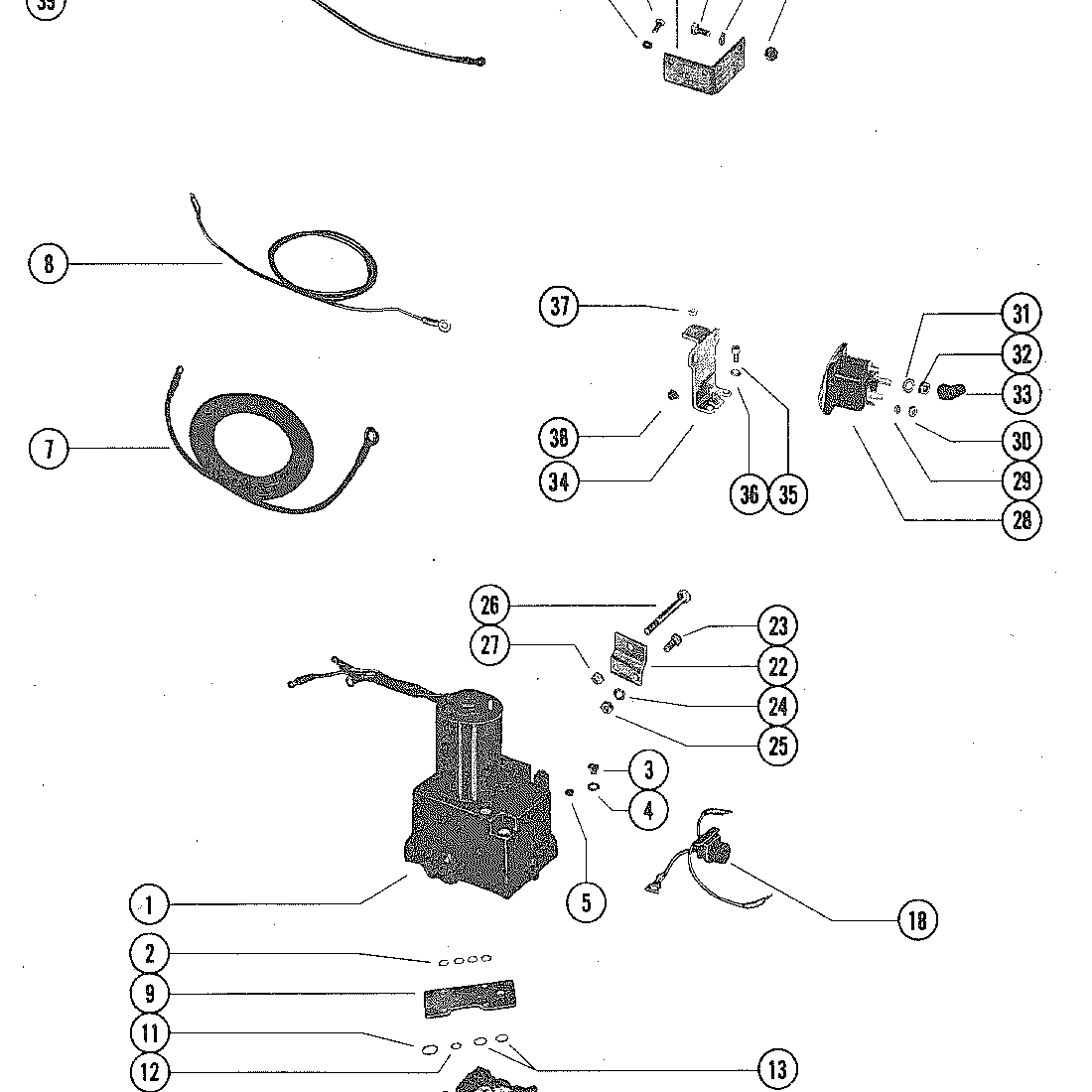

| 1 | 92975A32 | HYDRAULIC PUMP ASSEMBLY (SEE NOTE BELOW) | 76395A5 | SS |
|
$1,073.50 | $984.10 | 1 | |
| 2 | 48171 | --"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE | 21720 | SS |
|
$1.70 | $1.66 | 4 | |
| 3 | 79953Q04 | --SCREW, FILLER - HYDRAULIC PUMP | 28634 | SS |
|
$7.49 | $7.31 | 1 | |
| 4 | 191833 | --WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW | 20260 | SS |
|
$1.45 | $1.42 | 1 | |
| 5 | 62269 | --SCREW, VENT - HYDRAULIC PUMP | 38257 | SS |
|
$0.00 | $0.00 | 1 | |
| 7 | 32979 | BATTERY LEAD (POSITIVE) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 32988 | BATTERY LEAD (NEGATIVE) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 45336 | PLATE, MANIFOLD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 45197A2 | CONTROL VALVE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| -- | 48171 | --"O" RING, PUMP TO MANIFOLD PLATE (SEE REGERENCE #2) | 21720 | SS |
|
$1.70 | $1.66 | 4 | |
| 11 | 45254 | --"O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.) | ACT | $2.00 | $1.96 | 1 | |||
| 12 | 48171 | --"O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.) | 21720 | SS |
|
$1.70 | $1.66 | 1 | |
| 13 | 45253 | --"O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8"O.D.) | ACT | $1.60 | $1.57 | 2 | |||
| 14 | 56500 | SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1 1/4") | ACT | $2.90 | $2.83 | 4 | |||
| 15 | 26992 | LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW | ACT | $1.20 | $1.18 | 4 | |||
| 17 | 46008 | PLUG, CONTROL VALVE (1/2-20") | ACT | $4.50 | $4.39 | 2 | |||
| 18 | 74023A1 | CONNECTOR AND HARNESS | 74023 | SS |
|
$0.00 | $0.00 | 1 | |
| 22 | 45377T | BRACKET, MONTING - HYDRAULIC PUMP TO BOAT | 45377 | SS |
|
$0.00 | $0.00 | 2 | |
| 23 | 35386 | SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1") | 24234 | SS |
|
$1.10 | $1.08 | 4 | |
| 24 | 39107 | LOCKWASHER, MOUNTING BRACKET SCREW | ACT | $1.50 | $1.47 | 4 | |||
| 25 | 21908 | NUT, MOUNTING BRACKET SCREW | ACT | $3.20 | $3.13 | 4 | |||
| 26 | 68298 | BOLT, HYDRAULIC PUMP TO BOAT (3 1/4") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 27 | 82670912 | NUT, HYDRAULIC PUMP BOLT | 68411 | SS |
|
$6.80 | $6.64 | 2 | |
| 28 | 853654A1 | STARTER SOLENOID | 68258 | SS |
|
$42.49 | $41.57 | 2 | |
| 29 | 26996 | LOCKWASHER, STARTER SOLENOID TERMINAL (#10) | ACT | $1.20 | $1.18 | 4 | |||
| 30 | 68219 | NUT, STARTER SOLENOID TERMINAL (#10) | ACT | $3.00 | $2.93 | 4 | |||
| 31 | 8M0204647 | LOCKWASHER, STARTER SOLENOID TERMINAL (5/16") | 26993 | SS |
|
$1.80 | $1.76 | 4 | |
| 32 | 8M0204668 | NUT, STARTER SOLENOID TERMINAL (5/16") | 68292 | SS |
|
$3.80 | $3.71 | 4 | |
| 33 | 46265 | BOOT, RUBBER - STARTER SOLENOID TERMINAL | ACT | $4.20 | $4.10 | 4 | |||
| 34 | 74407T | BRACKET, MOUNTING - STARTER SOLENOID | 74407 | SS |
|
$0.00 | $0.00 | 1 | |
| 35 | 21140 | SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 36 | 26992 | LOCKWASHER, MOUNTING BRACKET SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 37 | 24656 | NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 38 | 269011 | BUMPER, RUBBER - SOLENOID BRACKET | 26901 | SS |
|
$4.00 | $3.91 | 1 | |
| 39 | 79139A2 | BATTERY LEAD (POSITIVE) | 55991 | SS |
|
$0.00 | $0.00 | 1 | |
| 39 | 55992 | BATTERY LEAD (NEGATIVE) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 74406 | BRACKET, MOUNTING - STARTER SOLENOID | NLA |
|
$0.00 | $0.00 | 1 | ||
| 41 | 69028 | SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4") | ACT | $2.90 | $2.83 | 2 | |||
| 42 | 26992 | LOCKWASHER, MOUNTING BRACKET SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 43 | 34290 | SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 44 | 26992 | LOCKWASHER, STARTER SOLENOID SCREW | ACT | $1.20 | $1.18 | 2 | |||
| 45 | 21825 | NUT, STARTER SOLENOID SCREW | ACT | $1.70 | $1.66 | 4 |
