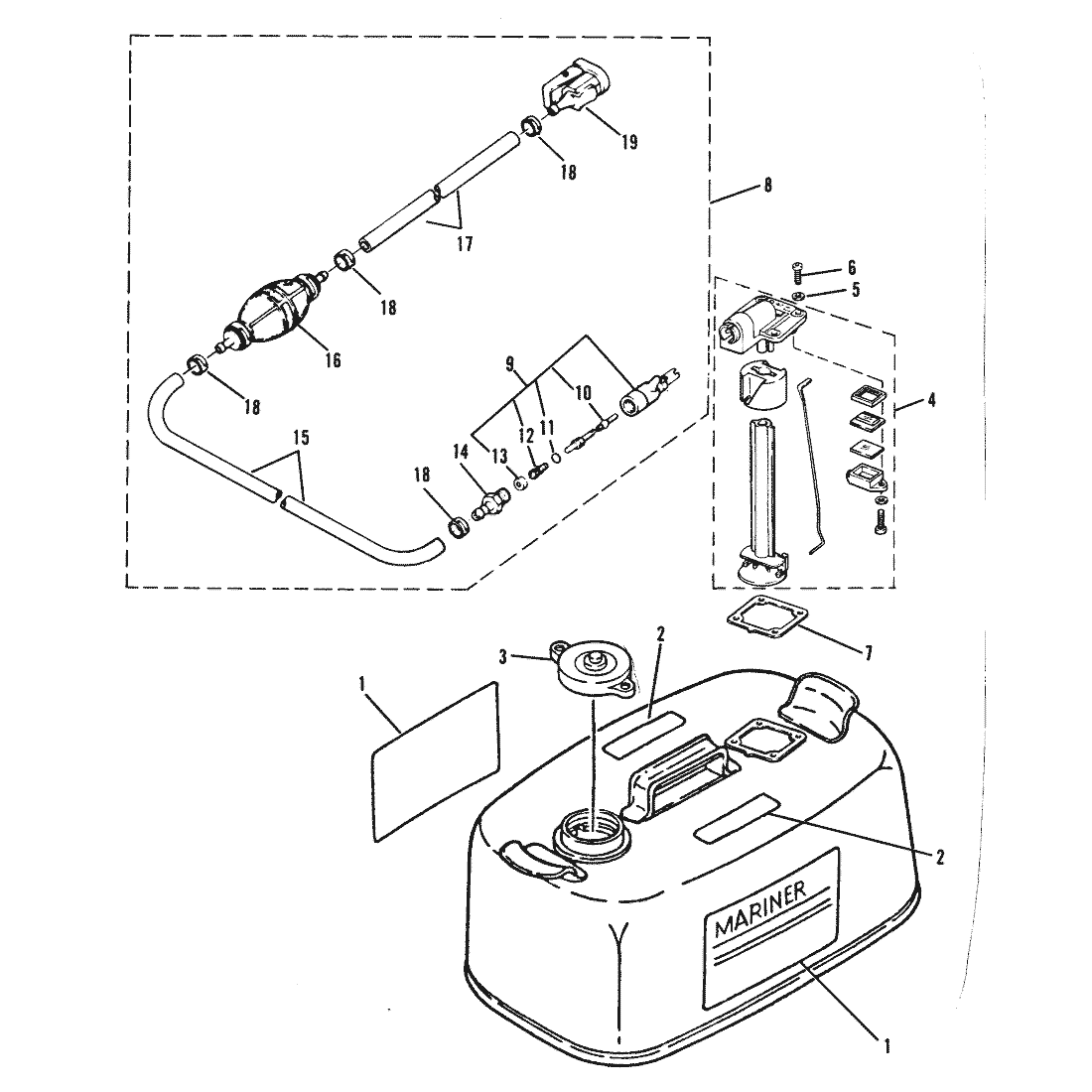

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 14617M | DECAL, SIDE (ENGLISH) | NLA |  | $0.00 | $0.00 | 1 | ||
| 1 | 95504M | DECAL, SIDE (FRENCH) | NLA | | $13.39 | $13.13 | 1 | ||
| 2 | 95489M | DECAL, TOP (ENGLISH) | NLA | | $8.93 | $8.78 | 1 | ||
| 2 | 95503M | DECAL, TOP (FRENCH) | NLA | | $8.14 | $7.97 | 1 | ||
| 3 | 18962M | FUEL TANK CAP | ACT | $56.92 | $54.75 | 1 | |||
| 4 | 95499M | FUEL METER ASSEMBLY | NLA | | $150.83 | $139.51 | 1 | ||
| 5 | 95501M | SEAL | NLA | | $0.55 | $0.54 | 4 | ||
| 6 | 95502M | SCREW | NLA | | $0.55 | $0.54 | 4 | ||
| 7 | 95500M | GASKET | NLA | | $5.65 | $5.50 | 1 | ||
| 8 | 8M0044838 | FUEL LINE ASSEMBLY | 822379A12 | SS | | $41.92 | $41.16 | 1 | |
| 9 | 30185Q3 | --BAYONET BODY ASSEMBLY | 30185A3 | SS | | $72.49 | $69.42 | 1 | |
| 10 | 30185Q3 | ----STEM | 30187 | NLA | | $72.49 | $69.42 | 1 | |
| 11 | 16524 | ----O-RING | 20415 | SS | | $1.40 | $1.37 | 1 | |
| 12 | 30189 | ----SPRING | ACT | $4.40 | $4.30 | 1 | |||
| 13 | 30188 | ----WASHER | ACT | $2.40 | $2.35 | 1 | |||
| 14 | 89771Q2 | --FITTING | 897711 | SS | | $15.49 | $15.09 | 1 | |
| 15 | 16571M | --HOSE | NLA | | $42.26 | $41.21 | 1 | ||
| 16 | 13330Q07 | --PRIMER BULB | 17149M | SS | | $13.13 | $12.90 | 1 | |
| 17 | 16571M | --HOSE | NLA | | $42.26 | $41.21 | 1 | ||
| 18 | 16574M | --CLAMP | NLA | | $8.83 | $8.62 | 4 | ||
| 19 | 13563Q3 | --FUEL CONNECTOR | 13563A3 | SS | | $19.99 | $19.56 | 1 |
