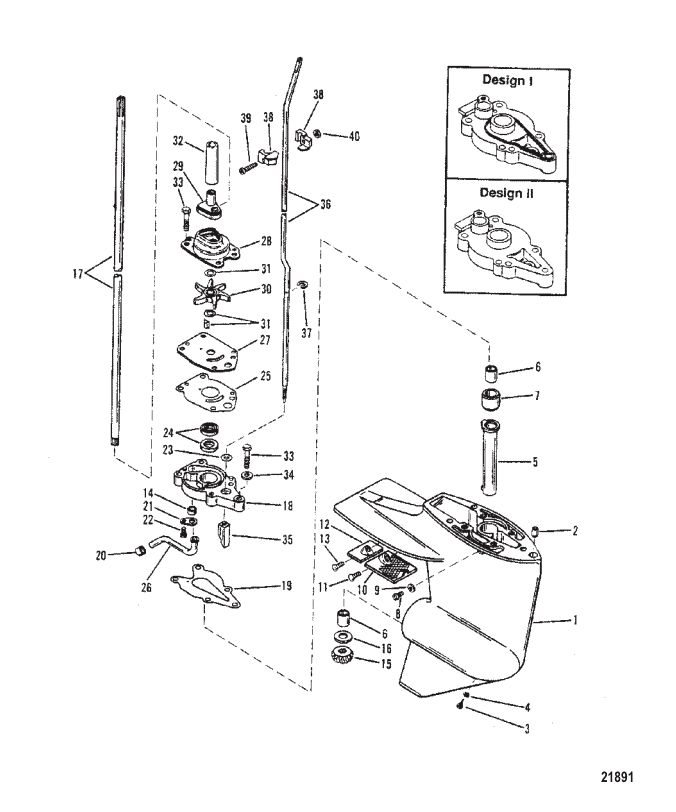

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8833T13 | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) BLACK | 8833A9 | SS |  | $1,500.00 | $1,375.09 | 1 | |
| - | 8833T15 | GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK | 8833A10 | SS | | $1,500.00 | $1,375.09 | 1 | |
| - | 8833T14 | GEAR HOUSING ASSEMBLY COMPLETE (SHORT) GRAY | 8833A11 | SS/NLA | | $1,670.99 | $1,486.24 | 1 | |
| - | 8833T15 | GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY | 8833A12 | SS | | $1,500.00 | $1,375.09 | 1 | |
| 1 | 8833A4 | ----GEAR HOUSING ASSEMBLY | NLA | | $450.43 | $424.18 | 1 | ||
| 2 | 12009 | --------BUSHING (.31 x .45 x .50) GEAR HOUSING | ACT | $2.80 | $2.74 | 1 | |||
| 3 | 8M0058389 | --------SCREW Magnetic | 67892 | SS | | $10.29 | $10.05 | 1 | |
| 4 | 191833 | --------WASHER | 191832 | SS | | $1.39 | $1.36 | 1 | |
| 5 | 42086A1 | --------SLEEVE KIT | NLA | | $20.49 | $19.97 | 1 | ||
| 6 | 41345 | ------------SLEEVE | ACT | $10.60 | $10.34 | 2 | |||
| 7 | 42191001 | ------------SLEEVE | 42191 | SS/NLA | | $5.66 | $5.53 | 1 | |
| 8 | 28653 | --------SCREW (#10-32 x 0.25) | ACT | $3.80 | $3.71 | 1 | |||
| 8 | 79953Q04 | --------SCREW (.375-16 x .250) | 79953 | SS | | $7.19 | $7.03 | 1 | |
| 9 | 19643 | --------SEAL | ACT | | $1.40 | $1.37 | 1 | ||
| 9 | 191833 | --------WASHER Fiber | 19183 | SS | | $1.39 | $1.36 | 1 | |
| 10 | 421991 | --------SCREEN | ACT | $5.90 | $5.76 | 1 | |||
| 11 | 13954 | --------SCREW (.250-14 x .88) | ACT | $4.50 | $4.39 | 1 | |||
| 12 | 42121Q02 | --------ANODE ASSEMBLY | 42121A2 | SS | | $14.39 | $14.05 | 1 | |
| 13 | 13954 | ------------SCREW (.250-14 x .88) | ACT | $4.50 | $4.39 | 1 | |||
| 14 | 42133 | --------SEAL | ACT | | $1.40 | $1.37 | 1 | ||
| 15 | 420411 | ----GEAR Pinion | ACT | $152.92 | $141.31 | 1 | |||
| 16 | 41369 | ----WASHER THRUST | ACT | $4.60 | $4.49 | 1 | |||
| 17 | 42192 | ----DRIVESHAFT (SHORT) | ACT | $258.75 | $243.67 | 1 | |||
| 17 | 42193 | ----DRIVESHAFT (LONG) | NLA | | $197.14 | $185.65 | 1 | ||
| 17 | 12367 | ----DRIVESHAFT (X-LONG) | NLA | | $141.02 | $132.82 | 1 | ||
| 18 | 42040T5 | ----BASE ASSEMBLY Water Pump | 42040A3 | SS | | $44.99 | $44.19 | 1 | |
| 19 | NLA | --------No Longer Available Gasket (SEE DESIGN I DRAWING) | | $0.00 | $0.00 | 1 | |||
| 19 | 192043 | --------GASKET (SEE DESIGN II DRAWING) | 192042 | SS | | $7.59 | $7.42 | 1 | |
| 20 | 33613 | --------SEAL | ACT | | $4.90 | $4.78 | 1 | ||
| 21 | 42375 | --------RETAINER | ACT | | $1.90 | $1.86 | 1 | ||
| 22 | 48408 | --------SCREW (#10-16 x .500) | ACT | | $2.16 | $2.12 | 1 | ||
| 23 | 822236 | --------QUAD RING | ACT | | $1.90 | $1.86 | 1 | ||
| 24 | 413651 | --------SEAL Oil | 41365 | SS | | $10.80 | $10.54 | 2 | |
| 25 | 19202001 | --------GASKET Water Pump Plate | 19202 | SS | | $4.19 | $4.10 | 1 | |
| 26 | 42185A1 | ----TUBE ASSEMBLY Water | ACT | $26.58 | $26.11 | 1 | |||
| 27 | 42200 | ----FACE PLATE | ACT | | $12.90 | $12.58 | 1 | ||
| 28 | 42089A2 | ----COVER ASSEMBLY | ACT | | $29.99 | $29.45 | 1 | ||
| 29 | 421021 | --------SEAL | ACT | | $7.00 | $6.83 | 1 | ||
| 30 | 42038Q02 | ----IMPELLER | 420382 | SS | | $32.99 | $32.35 | 1 | |
| 31 | 8M0173458 | ----KEY ASSEMBLY | 42376A1 | SS | | $9.90 | $9.66 | 1 | |
| 32 | 44467 | ----GUIDE | NLA | | $3.20 | $3.15 | 1 | ||
| 33 | 4000331 | ----SCREW (M6 x 30) WATER PUMP | ACT | $3.70 | $3.61 | 5 | |||
| 34 | 8M0204649 | ----WASHER (.281 x .500 x .06 | 29245 | SS | | $1.20 | $1.18 | 1 | |
| 35 | 42039 | ----CAM SHIFT | ACT | $18.00 | $17.68 | 1 | |||
| 36 | 8M0026064 | ----SHIFT SHAFT (SHORT) | 42145 | SS | | $80.92 | $77.83 | 1 | |
| 36 | 8M0026065 | ----SHIFT SHAFT (LONG) | 42146 | SS | | $90.83 | $87.37 | 1 | |
| 37 | 42389 | ----E RING | ACT | $1.00 | $0.98 | 1 | |||
| 38 | 8M0036770 | ----GUIDE | 42126 | SS | | $19.90 | $19.41 | 2 | |
| 39 | 40011109 | ----SCREW (M5 x 25) | 40056109 | SS | | $2.80 | $2.74 | 1 | |
| 40 | 401385 | ----NUT (M5) GUIDE SCREW | 400633 | SS | | $4.60 | $4.49 | 1 | |
| - | 42364A92 | GASKET SET Engine | ACT | $107.67 | $101.39 | 1 | |||
| - | 41365A3 | SEAL KIT | ACT | $67.25 | $64.69 | 1 | |||
| - | 42089A5 | PUMP KIT Water | ACT | $141.99 | $133.80 | 1 |
